50-36-1836 - Molex

Description: Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, Nylon 6/6 94V-2, 2.54?m Matte Tin (Sn) Plating, Natural, Tray

Download 50-36-1836 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
50-36-1836 - Molex - PCB symbol
click to zoom
PCB Footprints

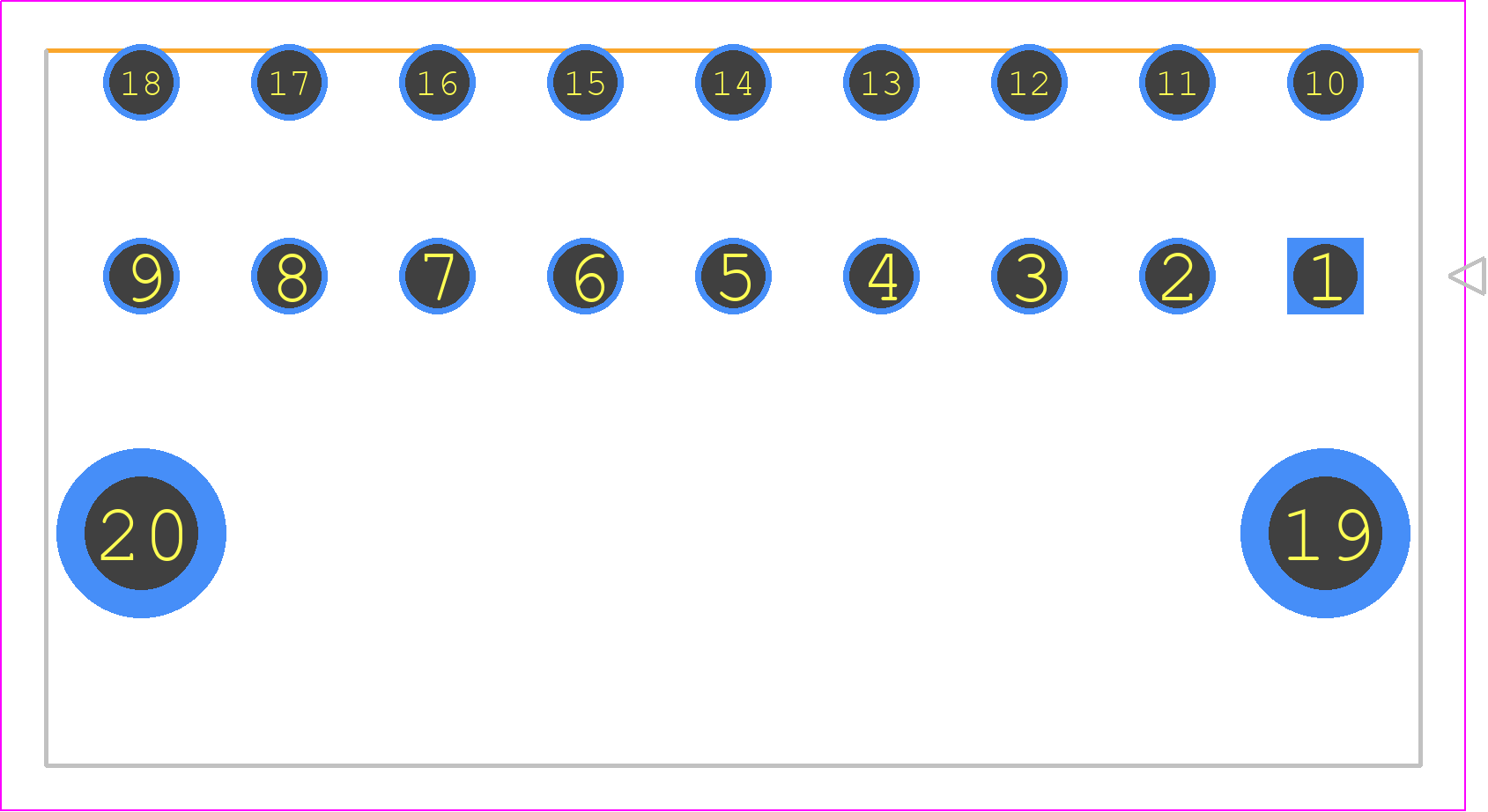

50-36-1836 - Molex PCB footprint - Other - Other - 50-36-1836
click to zoom
3D Models
50-36-1836 - Molex - 3D model - Other - 50-36-1836
click to zoom

50-36-1836 Details

  • Manufacturer Part Number:

    50-36-1836

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico, Usa

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    MINI-FIT JR

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94V-0

50-36-1836 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 50-36-1836 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • The 50-36-1836 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
  • The operating temperature range for the 50-36-1836 connector is -40°C to 105°C (-40°F to 221°F).
  • While the datasheet specifies AWG 24-18 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's recommended to consult with Molex or a qualified engineer to ensure compatibility and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

50-36-1836 Overview

Use the download button to access the 50-36-1836 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50-36, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
