50.12.9.005.5000 footprint, schematic symbol and 3D model by FINDER

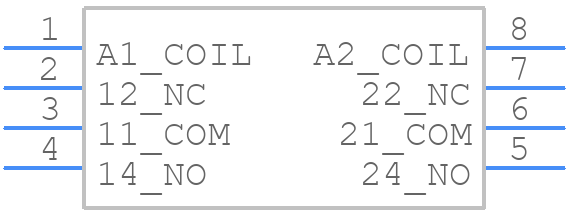

Symbol

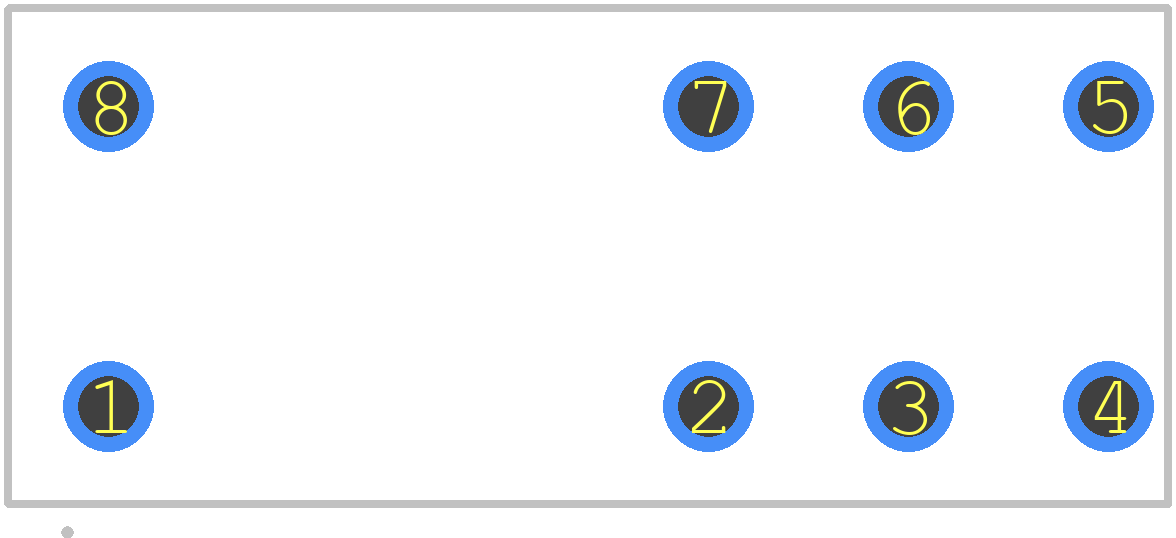

PCB Footprints

50.12.9.005.5000 Details

The operating temperature range of the 50.12.9.005.5000 relay module is -40°C to 85°C.
Yes, the relay module is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration.
The maximum switching current of the 50.12.9.005.5000 relay module is 5A at 250V AC.
Yes, the relay module is compatible with PLC (Programmable Logic Controller) systems, and can be easily integrated into industrial automation systems.
The electrical life expectancy of the 50.12.9.005.5000 relay module is 500,000 switching cycles at 5A, 250V AC.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 50.12.9.005.5000 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 50.12, or try a keyword search, such as Other Relays
