500762-0481 - Molex

Description: CMC Header Right Angle 48 Circuits Molex 500762-0481, 48 Way 4 Row Black CMC Series Male Through Hole Header, Solder Termination

Download 500762-0481 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

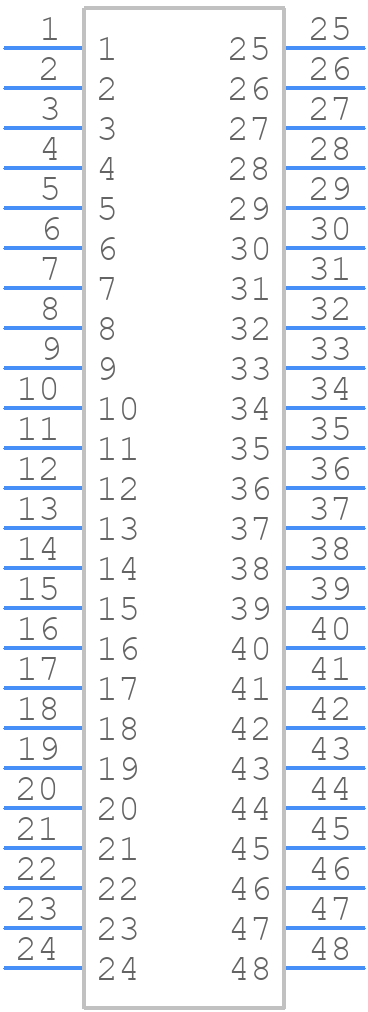

500762-0481 - Molex - PCB symbol
click to zoom
PCB Footprints

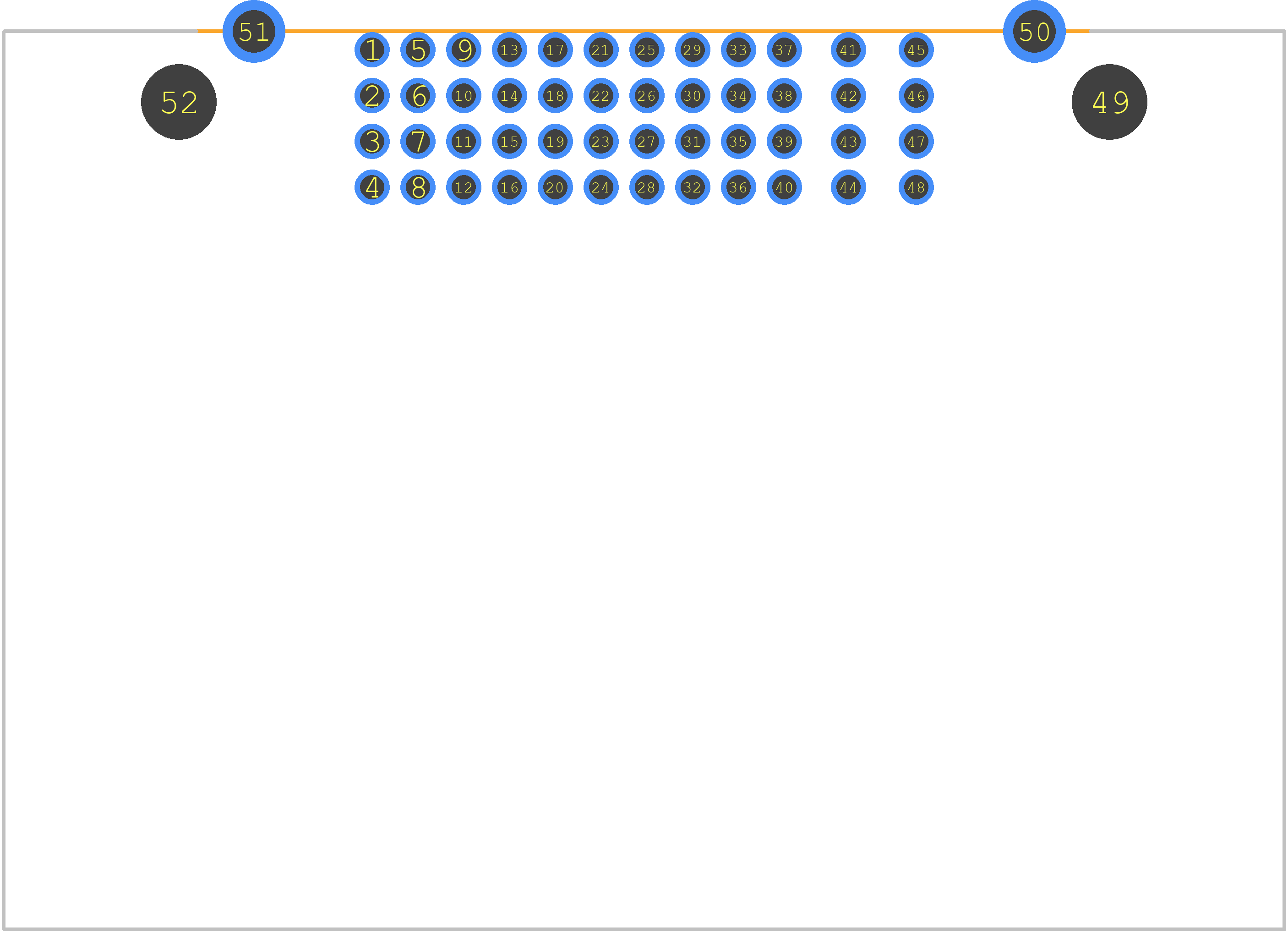

500762-0481 - Molex PCB footprint - Other - Other - 500762-0481
click to zoom
3D Models
500762-0481 - Molex - 3D model - Other - 500762-0481
click to zoom

500762-0481 Details

  • Manufacturer Part Number:

    500762-0481

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.59

  • Additional Feature:

    POLARIZED, SHROUDED

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    64320-1311, 64320-3311

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

500762-0481 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 5007620481 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 5007620481 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 5007620481 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • No, the 5007620481 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
