500797-1194 - Molex

Description: FFC & FPC Connectors 0.3 FPC E/O 11Ckt Em E/O 11Ckt EmbsTp Pkg

Download 500797-1194 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

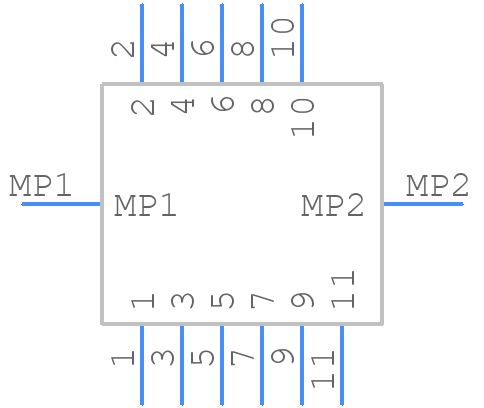

500797-1194 - Molex - PCB symbol
click to zoom
PCB Footprints
500797-1194 - Molex PCB footprint - Other - Other - 500797-1194-2
click to zoom
3D Models
500797-1194 - Molex - 3D model - Other - 500797-1194-2
click to zoom

500797-1194 Details

  • Manufacturer Part Number:

    500797-1194

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    ROHS COMPLIANT

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.041 inch

  • Body Depth:

    0.152 inch

  • Body Length:

    0.213 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.3 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    11

  • UL Flammability Code:

    94V-0
