500SSP1S1M7REA - E-Switch

500SSP1S1M7REA Details

• Manufacturer Part Number:

  500SSP1S1M7REA

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  E-Switch Inc

• YTEOL:

  9.28

• Actuator Length:

  0.2 inch

• Actuator Material:

  NYLON

• Actuator Type:

  SLIDE

• Body Breadth:

  6.604 mm

• Body Height:

  7.6962 mm

• Body Length or Diameter:

  12.7 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(AC)-Max:

  250 V

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

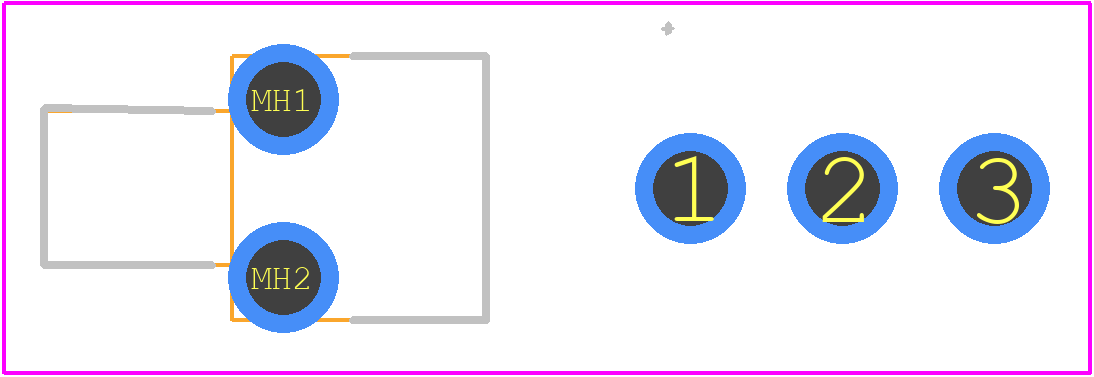

• PCB Hole Count:

  5

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.156 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
