500SSP1S2M6REA - E-Switch

500SSP1S2M6REA Details

• Manufacturer Part Number:

  500SSP1S2M6REA

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  E-Switch Inc

• YTEOL:

  0

• Actuator Length:

  0.272 inch

• Actuator Material:

  NYLON

• Actuator Type:

  SLIDE

• Body Breadth:

  6.604 mm

• Body Length or Diameter:

  13.208 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

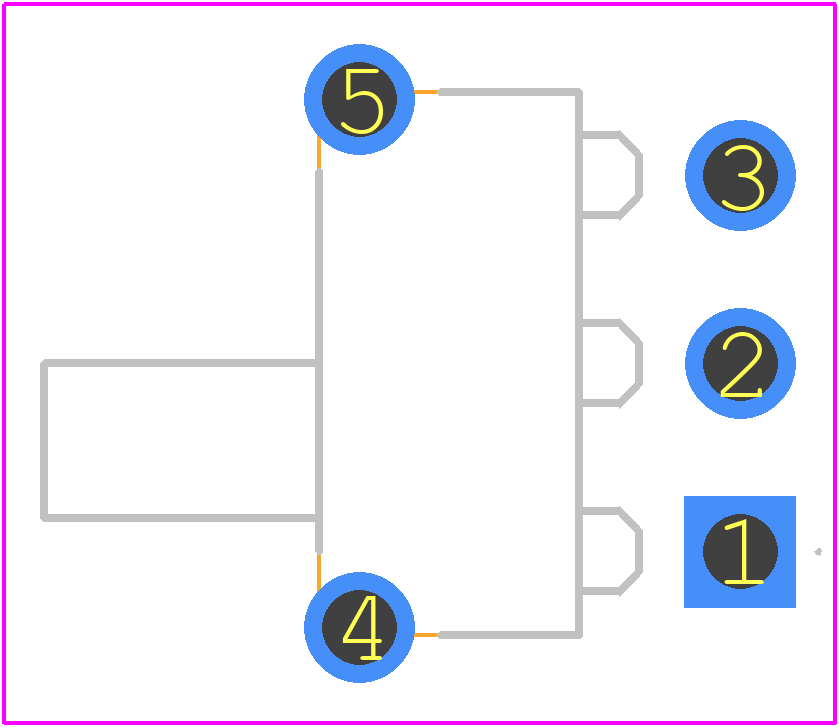

• PCB Hole Count:

  5

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Function:

  SPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.125 inch

• Termination Type:

  SOLDER
