501594-1211 - Molex

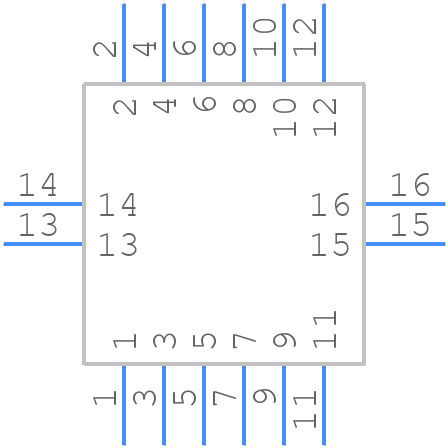

501594-1211 Details

• Manufacturer Part Number:

  501594-1211

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Molex

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.078 inch

• Body Depth:

  0.028 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  GOLD OVER NICKEL

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  90 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  176VAC V

• Durability:

  20 Cycles

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• Manufacturer Series:

  501594

• Mating Contact Pitch:

  0.016 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  4u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Pitch:

  0.4064 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  12
