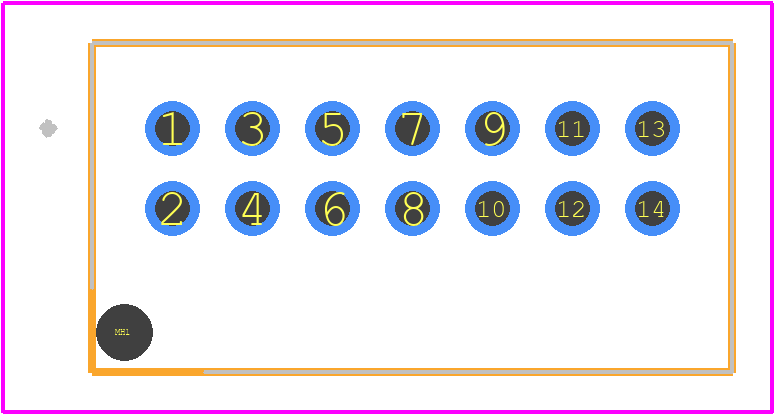

501645-1420 - Molex

501645-1420 Details

• Manufacturer Part Number:

  501645-1420

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  8

• Board Mounting Option:

  PEG

• Body Breadth:

  0.323 inch

• Body Depth:

  0.472 inch

• Body Length:

  0.629 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1400VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2 A

• Reference Standard:

  UL

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  14

• UL Flammability Code:

  94V-0
