5016452420 - Molex

Description: 2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 24 Circuits, Tray, 3.20mm PC Tail Length, Natural, with PCB Locator

Download 5016452420 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

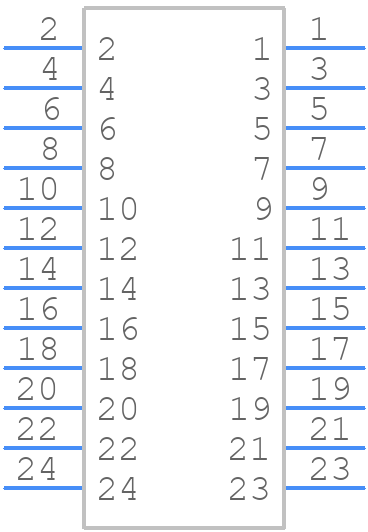

5016452420 - Molex - PCB symbol
click to zoom
PCB Footprints

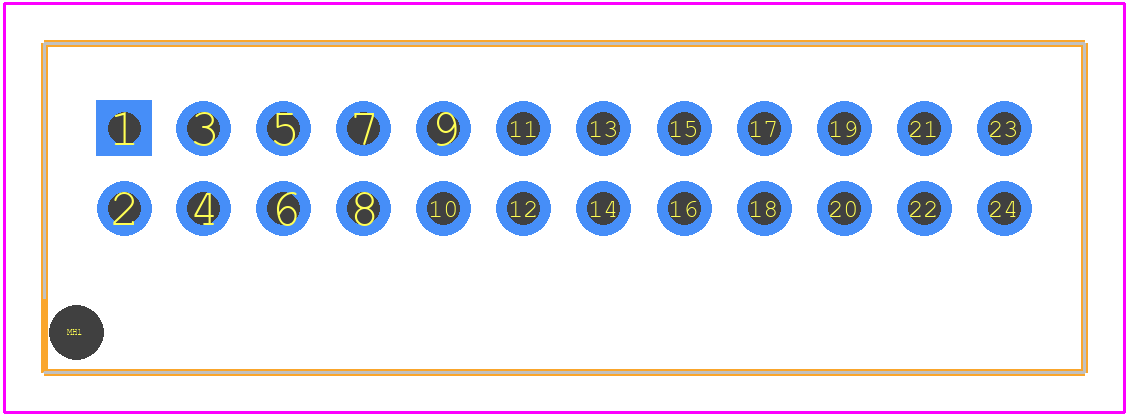

5016452420 - Molex PCB footprint - Other - Other - 5016452420-1
click to zoom
3D Models
5016452420 - Molex - 3D model - Other - 5016452420-1
click to zoom

5016452420 Details

  • Manufacturer Part Number:

    5016452420

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Manufacturer Series:

    5016452420

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5016452420 Overview

Use the download button to access the 5016452420 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50164, or try a keyword search, such as Headers and Edge Type Connectors
