501876-3440 - Molex

Description: Headers & Wire Housings IGRID 34P RA HDR DUAL ROW

Download 501876-3440 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
501876-3440 - Molex - PCB symbol
click to zoom
PCB Footprints

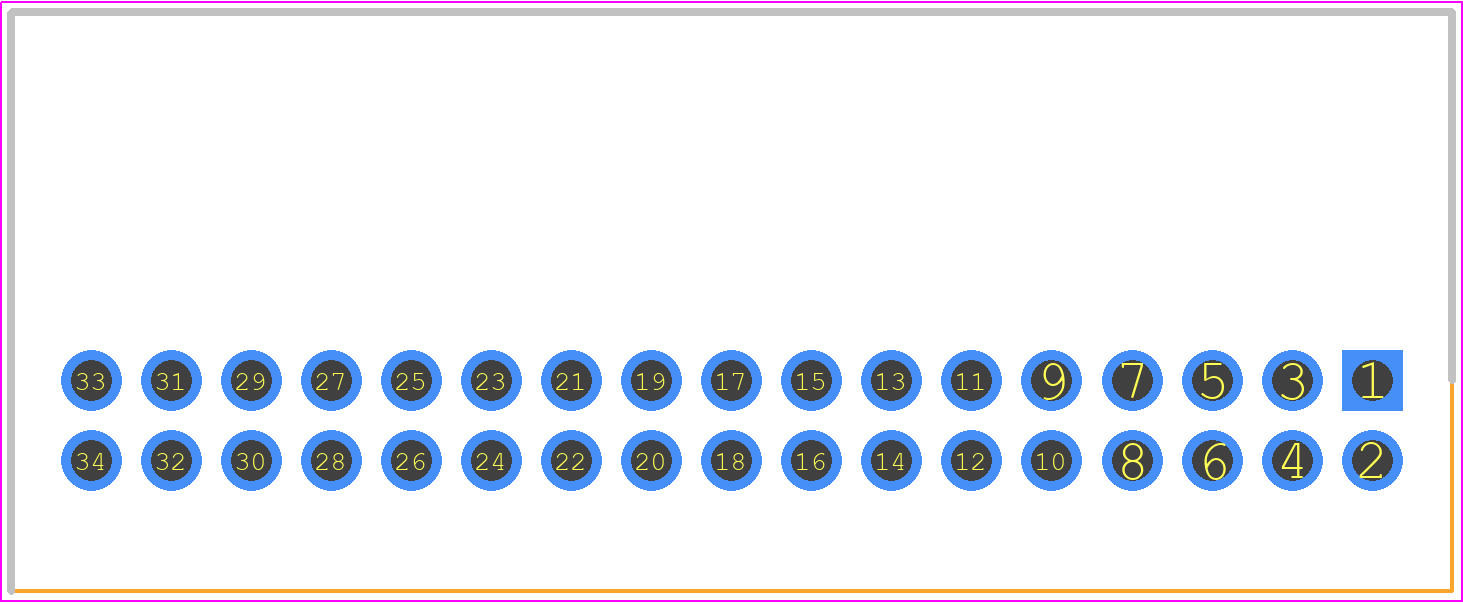

501876-3440 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 501876-3440
click to zoom
3D Models
501876-3440 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 501876-3440
click to zoom

501876-3440 Details

  • Manufacturer Part Number:

    501876-3440

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.4

  • Body Breadth:

    0.327 inch

  • Body Depth:

    0.571 inch

  • Body Length:

    1.417 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN ON NI

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

501876-3440 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 501876-3440 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 501876-3440 connector has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 501876-3440 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 501876-3440 connector. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

501876-3440 Overview

Use the download button to access the 501876-3440 schematic symbol, PCB footprint, and 3D model.
