501876-4040 - Molex

501876-4040 Details

• Manufacturer Part Number:

  501876-4040

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Factory Lead Time:

  40 Weeks

• Manufacturer:

  Molex

• Body Breadth:

  0.326 inch

• Body Depth:

  0.57 inch

• Body Length:

  1.653 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  SN ON NI

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  30 Cycles

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  GLASS FILLED NYLON

• Manufacturer Series:

  501876

• Mating Contact Pitch:

  0.079 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

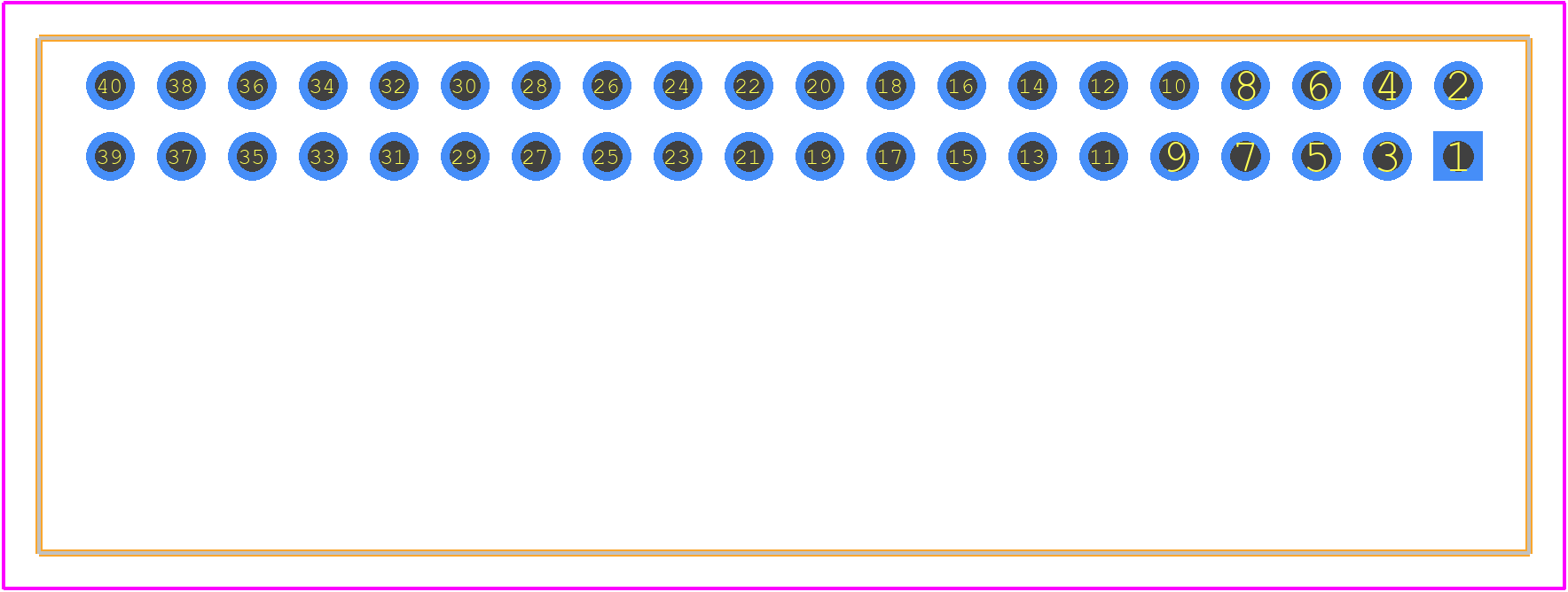

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.9812 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  1.9812 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  40
