5019314070 - Molex

Description: Conn Wire to Board RCP 40 POS 1.25mm Solder ST SMD Duo-Clasp™ T/R

Download 5019314070 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

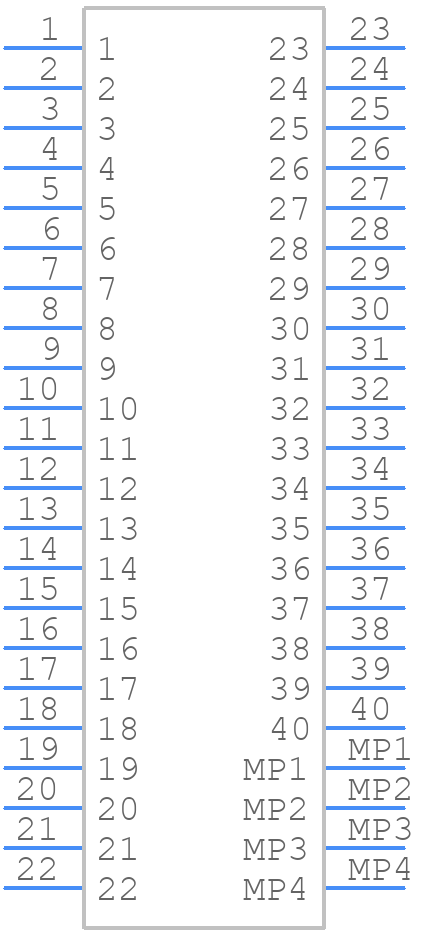

Symbol
5019314070 - Molex - PCB symbol
click to zoom

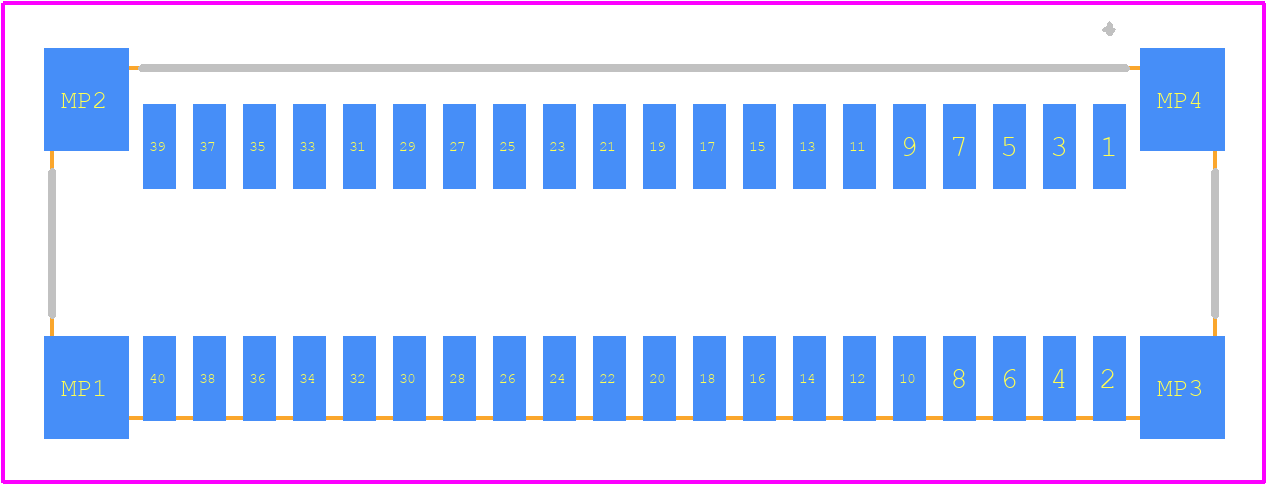

PCB Footprints
5019314070 - Molex PCB footprint - Other - Other - 5019314070-1
click to zoom
3D Models
5019314070 - Molex - 3D model - Other - 5019314070-1
click to zoom

5019314070 Details

  • Manufacturer Part Number:

    5019314070

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.346 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    1.161 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.049 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    3.93u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.2446 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

5019314070 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5019314070 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • Yes, the 5019314070 connector is designed for automated assembly and wire termination processes. The connector's design and materials are compatible with various automated assembly and wire termination equipment.
  • The operating temperature range for the 5019314070 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this temperature range to maintain its performance and reliability.
  • The 5019314070 connector is designed to operate in a variety of environments, including those with high humidity. However, exposure to harsh chemicals may affect the connector's performance and longevity. It's recommended to consult with Molex or a qualified engineer to determine the connector's suitability for specific environmental conditions.
