502430-3230 - Molex

Description: Board to Board & Mezzanine Connectors 0.4 B/B PLUG ASSY W/TAPE 32P

Download 502430-3230 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

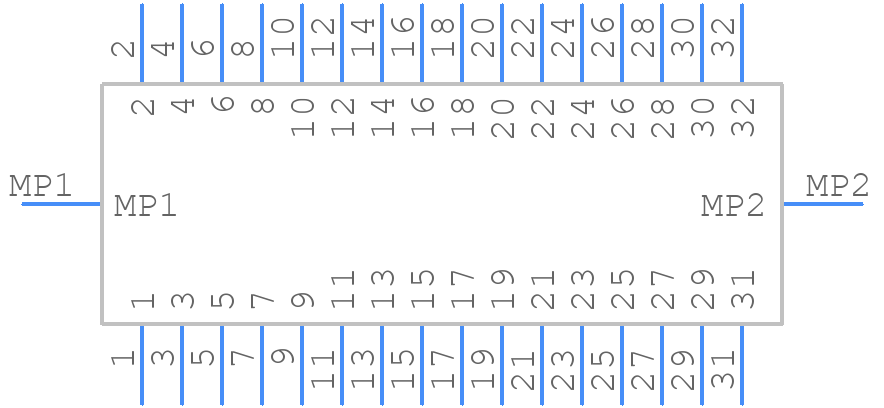

502430-3230 - Molex - PCB symbol
click to zoom
PCB Footprints
502430-3230 - Molex PCB footprint - Other - Other - 502430-3230-1
click to zoom
3D Models
502430-3230 - Molex - 3D model - Other - 502430-3230-1
click to zoom

502430-3230 Details

  • Manufacturer Part Number:

    502430-3230

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.061 inch

  • Body Depth:

    0.031 inch

  • Body Length:

    0.341 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.016 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    7.87u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.4064 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

502430-3230 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 502430-3230 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 502430-3230 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Molex offers additional sealing options or specialized connectors for extreme environmental conditions.
  • The 502430-3230 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. Using larger wire sizes may require specialized tools or adapters, and it's essential to ensure proper wire stripping and termination to prevent damage to the connector.
  • The 502430-3230 connector is designed to mate with Molex's proprietary connectors. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex's mating connectors to ensure optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

502430-3230 Overview

Use the download button to access the 502430-3230 schematic symbol, PCB footprint, and 3D model.
