502598-2993 - Molex

Description: 0.30mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Dual Contact Style, 1.15mm Mated Height, Circuits

Download 502598-2993 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

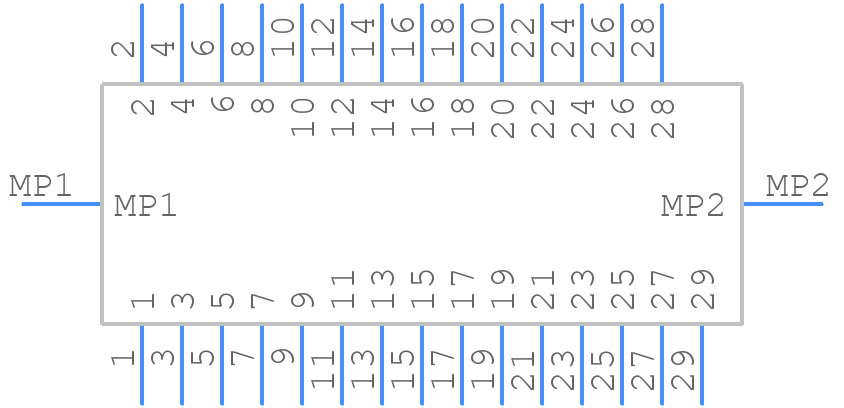

502598-2993 - Molex - PCB symbol
click to zoom
PCB Footprints
502598-2993 - Molex PCB footprint - Other - Other - 502598-2993-1
click to zoom
3D Models
502598-2993 - Molex - 3D model - Other - 502598-2993-1
click to zoom

502598-2993 Details

  • Manufacturer Part Number:

    502598-2993

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.045 inch

  • Body Depth:

    0.15 inch

  • Body Length:

    0.425 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    60 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    3.93u inch

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6096 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    29
