502598-4593 - Molex

Description: Molex 502598 Series 0.3mm Pitch 45 Way SMT Female FPC Connector

Download 502598-4593 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

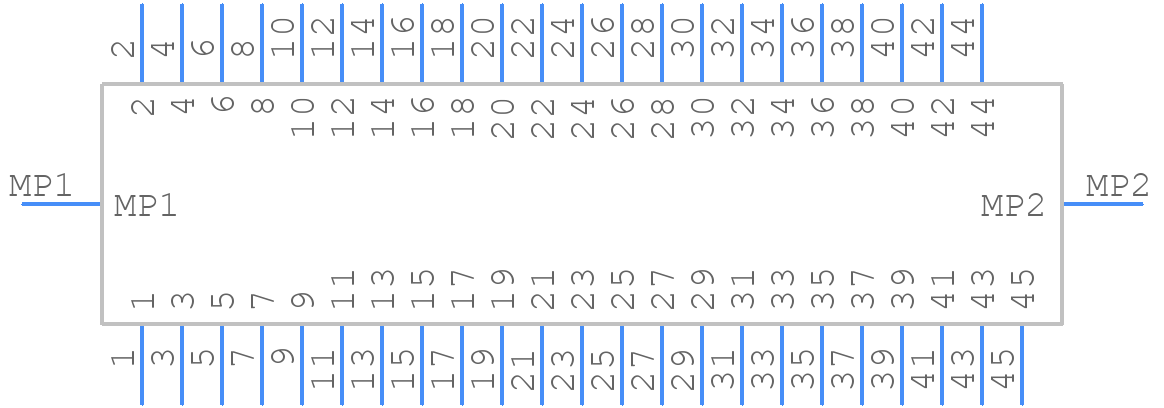

502598-4593 - Molex - PCB symbol
click to zoom
PCB Footprints
502598-4593 - Molex PCB footprint - Other - Other - 502598-4593-2
click to zoom
3D Models
502598-4593 - Molex - 3D model - Other - 502598-4593-2
click to zoom

502598-4593 Details

  • Manufacturer Part Number:

    502598-4593

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.045 inch

  • Body Depth:

    0.15 inch

  • Body Length:

    0.614 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    60 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    3.93u inch

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6096 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    45

502598-4593 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 502598-4593 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 502598-4593 connector is designed for indoor use, but it can be used in outdoor or harsh environmental conditions with proper sealing and protection. It's essential to follow Molex's guidelines for environmental sealing and protection to ensure reliable operation.
  • The 502598-4593 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.
  • Yes, the 502598-4593 connector is designed to be compatible with other Molex products and third-party components. However, it's essential to ensure compatibility and follow Molex's guidelines for mating and compatibility to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

502598-4593 Overview

Use the download button to access the 502598-4593 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50259, or try a keyword search, such as Headers and Edge Type Connectors
