503148-2690 - Molex

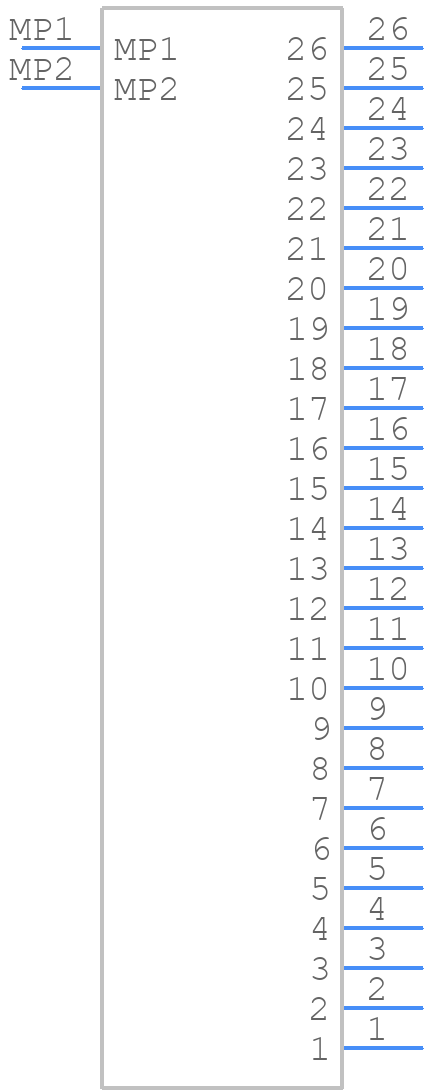

503148-2690 Details

• Manufacturer Part Number:

  503148-2690

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan, Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.362 inch

• Body Depth:

  0.344 inch

• Body Length:

  0.937 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  102.5 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• Mating Contact Pitch:

  0.059 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  39.37u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.75 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  5.2 N
