503154-1290 - Molex

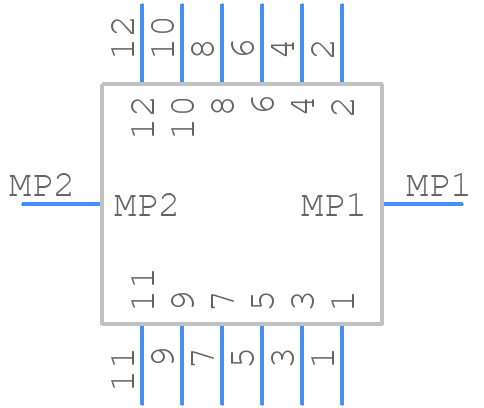

503154-1290 Details

• Manufacturer Part Number:

  503154-1290

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan, Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  21 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7.8

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.362 inch

• Body Depth:

  0.346 inch

• Body Length:

  0.524 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  BELLOWED TYPE

• Filter Feature:

  NO

• Insulation Resistance:

  500000000 Ω

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.059 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.4986 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  12
