503154-2690 - Molex

Description: 1.50mm Pitch CLIK Mate Wire to Board PCB Receptacle Dual Row Surface Mount Vertical Tin Plating 26 Circuits

Download 503154-2690 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

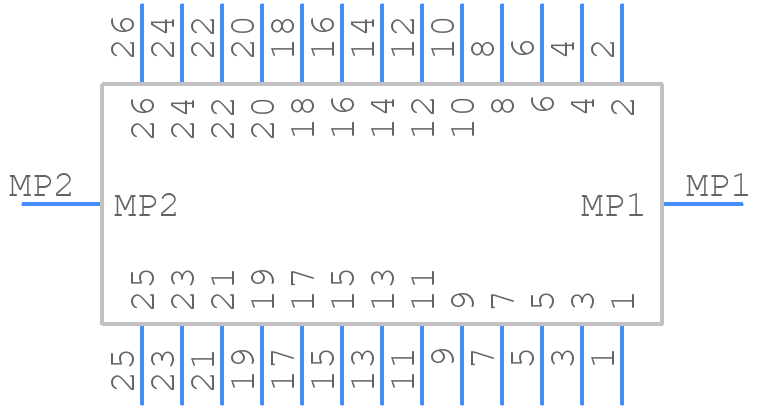

Symbol
503154-2690 - Molex - PCB symbol
click to zoom
PCB Footprints
503154-2690 - Molex PCB footprint - Other - Other - 503154-2690-1
click to zoom
3D Models
503154-2690 - Molex - 3D model - Other - 503154-2690-1
click to zoom

503154-2690 Details

  • Manufacturer Part Number:

    503154-2690

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.8

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    0.937 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

503154-2690 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 503154-2690 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque to prevent loosening over time.
  • The 503154-2690 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor use or exposure to harsh environmental conditions. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP68.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you'll need to ensure that the wire size is compatible with the connector's terminal design and that the wire can be securely fastened to the screw terminals. Consult with a Molex representative or a qualified engineer for guidance on using alternative wire sizes.
  • Yes, when designing the PCB layout, ensure that the connector is placed on a solid ground plane to minimize electromagnetic interference (EMI). Also, keep the PCB traces away from the connector's mating area to prevent electrical noise and ensure reliable connections. Consult the Molex application notes and PCB layout guidelines for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

503154-2690 Overview

Use the download button to access the 503154-2690 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50315, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
