503154-3290 - Molex

Description: Headers & Wire Housings 1.5W/B DUAL EMBOSSED TAPE PACKAGE

Download 503154-3290 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

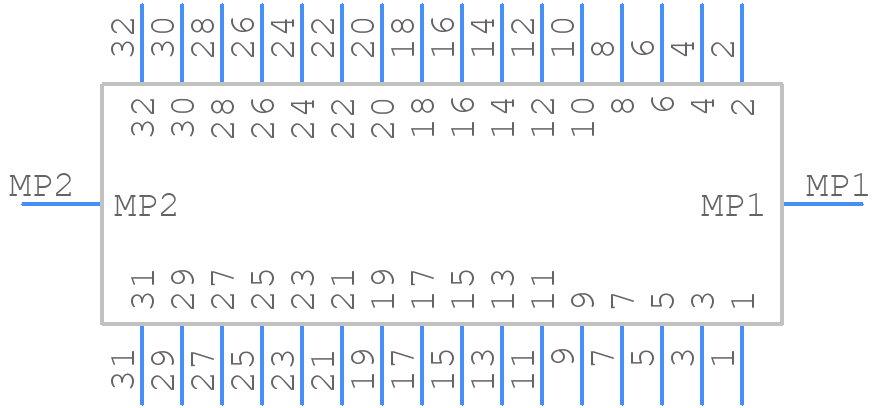

Symbol
503154-3290 - Molex - PCB symbol
click to zoom

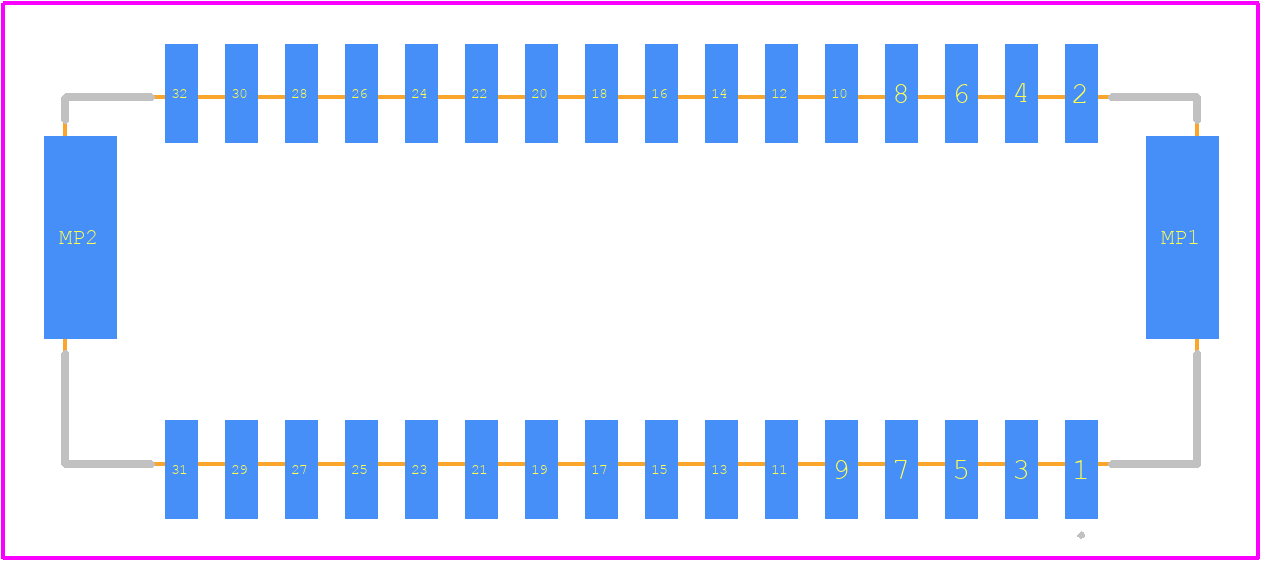

PCB Footprints
503154-3290 - Molex PCB footprint - Other - Other - 503154-3290-1
click to zoom
3D Models
503154-3290 - Molex - 3D model - Other - 503154-3290-1
click to zoom

503154-3290 Details

  • Manufacturer Part Number:

    503154-3290

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.8

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    1.114 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

503154-3290 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 503154-3290 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 503154-3290 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 503154-3290 connector is designed for automated assembly processes and can be used with pick-and-place machines and other automated assembly equipment.
  • The recommended wire size for the 503154-3290 connector is 24-20 AWG (0.25-0.5 mm²). Using wires within this size range ensures reliable connections and prevents damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

503154-3290 Overview

Use the download button to access the 503154-3290 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50315, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
