5031541890 - Molex

Description: 1.50mm Pitch, CLIK-Mate PCB Receptacle, Dual Row, Surface Mount, Vertical, Tin Plating, Positive Lock, 18 Circuits, Natural

Download 5031541890 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5031541890 - Molex - PCB symbol
click to zoom
PCB Footprints

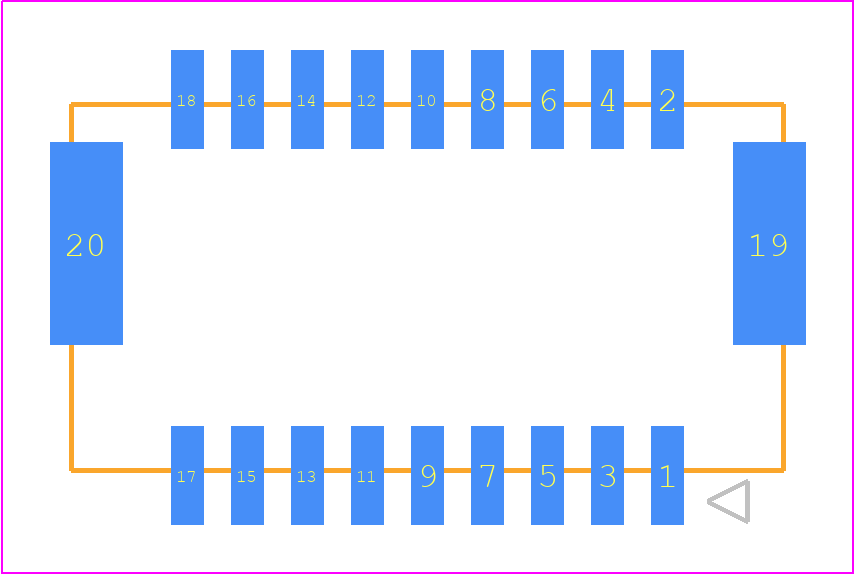

5031541890 - Molex PCB footprint - Other - Other - 5031541890
click to zoom
3D Models
5031541890 - Molex - 3D model - Other - 5031541890
click to zoom

5031541890 Details

  • Manufacturer Part Number:

    5031541890

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.8

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    0.701 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

5031541890 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5031541890 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5031541890 connector has a IP67 rating, making it suitable for outdoor use and harsh environmental conditions. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 5031541890 connector is designed to accommodate wire sizes up to 1.5 mm² (16 AWG). Using larger wire sizes may compromise the connection reliability and may not meet the connector's specifications.
  • The 5031541890 connector is part of Molex's standard product line and is designed to be compatible with other Molex products and systems. However, it's essential to verify compatibility and ensure proper mating and connection before using it with other Molex products.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5031541890 Overview

Use the download button to access the 5031541890 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50315, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
