5031821853 - Molex

Description: Micro SD Connector. Normal Ultra low-profile Assembly

Download 5031821853 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

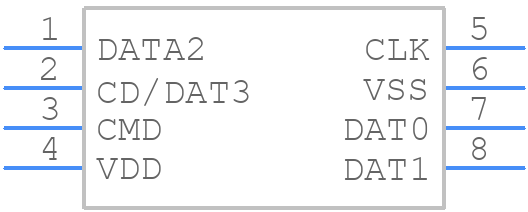

5031821853 - Molex - PCB symbol
click to zoom
PCB Footprints
5031821853 - Molex PCB footprint - Other - Other - 5031821853
click to zoom
3D Models
5031821853 - Molex - 3D model - Other - 5031821853
click to zoom

5031821853 Details

  • Manufacturer Part Number:

    5031821853

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Durability:

    10000 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.043 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    1.1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8
