503320-4160 - Molex

Description: 0.25mm Pitch Easy-On FPC Connector, 1.65mm Mated Height, Right-Angle, Surface Mount, Bottom Contact Style, 41 Circuits

Download 503320-4160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

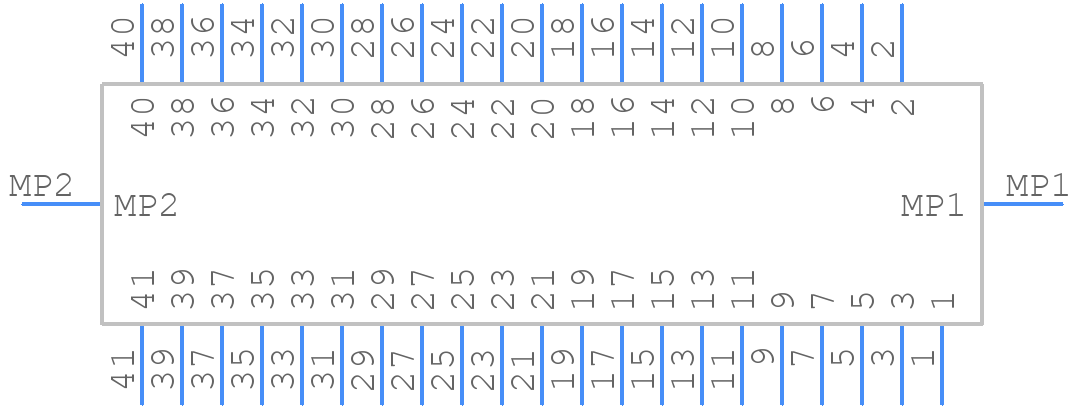

503320-4160 - Molex - PCB symbol
click to zoom
PCB Footprints
503320-4160 - Molex PCB footprint - Other - Other - 503320-4160-2
click to zoom
3D Models
503320-4160 - Molex - 3D model - Other - 503320-4160-2
click to zoom

503320-4160 Details

  • Manufacturer Part Number:

    503320-4160

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

  • Manufacturer Series:

    503320

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

503320-4160 Overview

Use the download button to access the 503320-4160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50332, or try a keyword search, such as Headers and Edge Type Connectors
