503480-2400 - Molex

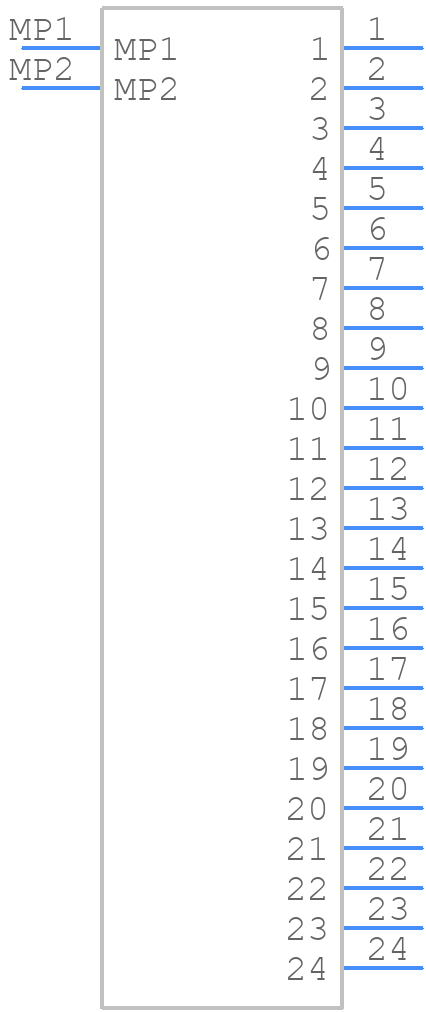

503480-2400 Details

• Manufacturer Part Number:

  503480-2400

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, South Korea, Vietnam

• ECCN Code:

  EAR99

• Factory Lead Time:

  23 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.039 inch

• Body Depth:

  0.142 inch

• Body Length:

  0.539 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  100 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  200VAC V

• Durability:

  10 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  WHITE

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.020 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  3.937u inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0
