503552-1280 - Molex

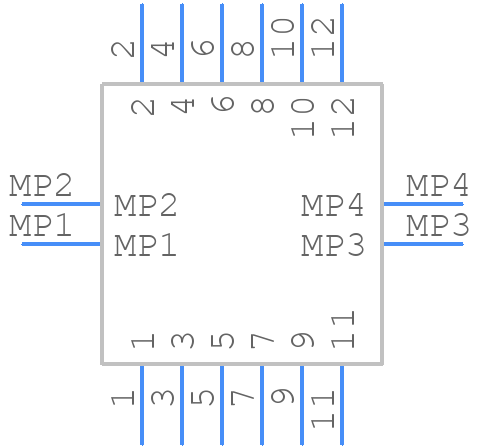

503552-1280 Details

• Manufacturer Part Number:

  503552-1280

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Molex

• Body Breadth:

  0.066 inch

• Body Depth:

  0.023 inch

• Body Length:

  0.152 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  GOLD OVER NICKEL

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER (LCP)

• Manufacturer Series:

  503552

• Mating Contact Pitch:

  0.016 inch

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• PCB Contact Pattern:

  RECTANGULAR

• Polarization Key:

  POLARIZED HOUSING

• Reference Standard:

  UL

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Pitch:

  0.4064 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  12
