- Part Number 503566-1100
- Manufacturer Molex
- Pin Count 13
- Part Category Connector
- Package Category Other
- Footprint Name Other - 503566-1100-3
- Released Date Jun 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
503566-1100 Details
-
Manufacturer Part Number:
503566-1100
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
Molex
-
YTEOL:
0
-
Body Breadth:
0.037 inch
-
Connector Type:
FFC/FPC CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
503566-1100 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 503566-1100 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
Yes, the 503566-1100 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
-
The operating temperature range for the 503566-1100 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
-
The 503566-1100 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in these environments.
Trust Checks
Community Provided
System Verified
Community Approved
503566-1100 Overview

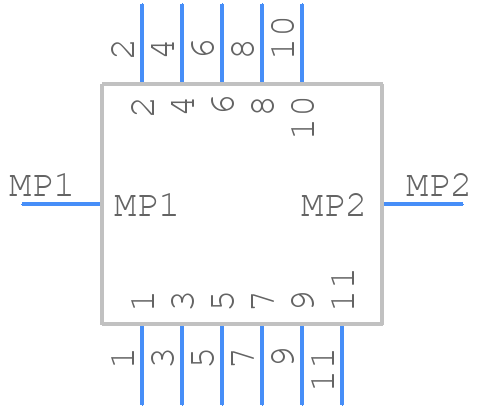

Use the download button to access the 503566-1100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50356,
or try a keyword search, such as Headers and Edge Type Connectors
