503566-2100 - Molex

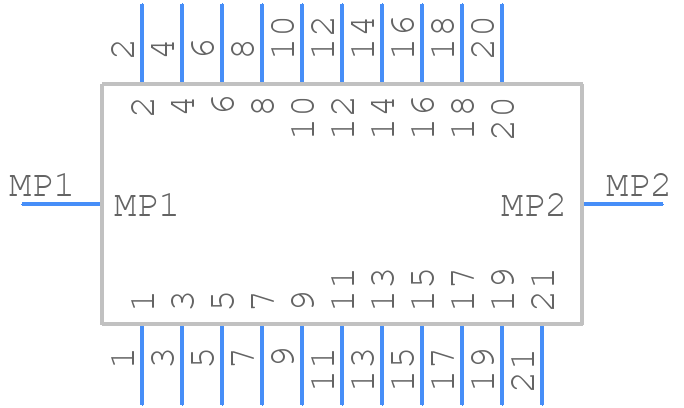

503566-2100 Details

• Manufacturer Part Number:

  503566-2100

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• Manufacturer:

  Molex

• YTEOL:

  0

• Body Breadth:

  0.037 inch

• Body Depth:

  0.112 inch

• Body Length:

  0.313 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  250VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.012 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.43 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.6 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  21

• UL Flammability Code:

  94V-0
