The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 503566-2302 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with Molex or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The operating temperature range for the 503566-2302 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this temperature range to maintain its performance and reliability.
The 503566-2302 connector has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to consult with Molex or a qualified engineer to ensure the connector meets the specific environmental requirements of your application.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's recommended to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the application's requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
503566-2302 Overview

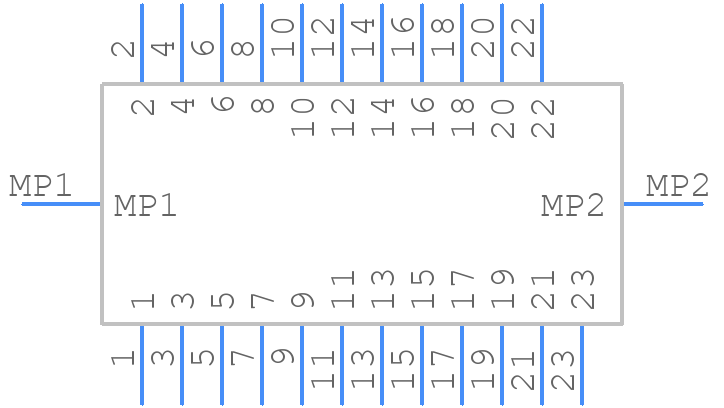

Use the download button to access the 503566-2302 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50356,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
