503772-2010 - Molex

Description: Board to Board & Mezzanine Connectors 20Ckt SMT Vert Recpt 0.40mm Pitch BTB

Download 503772-2010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

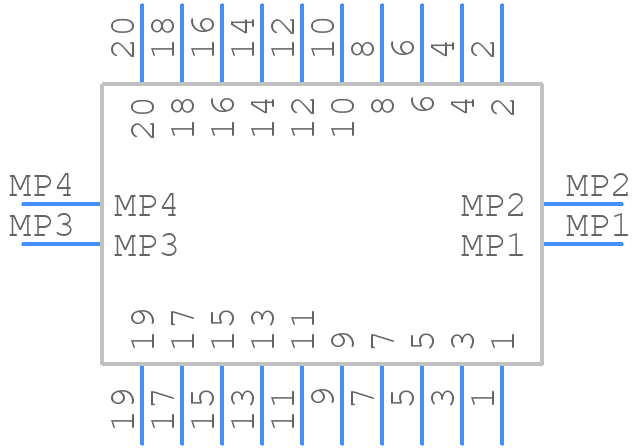

503772-2010 - Molex - PCB symbol
click to zoom
PCB Footprints
503772-2010 - Molex PCB footprint - Other - Other - 503772-2010-2
click to zoom
3D Models
503772-2010 - Molex - 3D model - Other - 503772-2010-2
click to zoom

503772-2010 Details

  • Manufacturer Part Number:

    503772-2010

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    SLIMSTACK

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.098 inch

  • Body Depth:

    0.025 inch

  • Body Length:

    0.252 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    80 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.143 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

503772-2010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5037722010 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5037722010 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand some environmental stress, but it's not designed for extreme temperatures or exposure to corrosive substances.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, the 5037722010 connector has specific PCB layout requirements to ensure reliable connections and prevent damage. It's essential to follow Molex's recommended PCB layout guidelines, including keeping the PCB material thickness within the recommended range and maintaining a minimum distance between the connector and other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

503772-2010 Overview

Use the download button to access the 503772-2010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50377, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
