5046224012 footprint, schematic symbol and 3D model by Molex

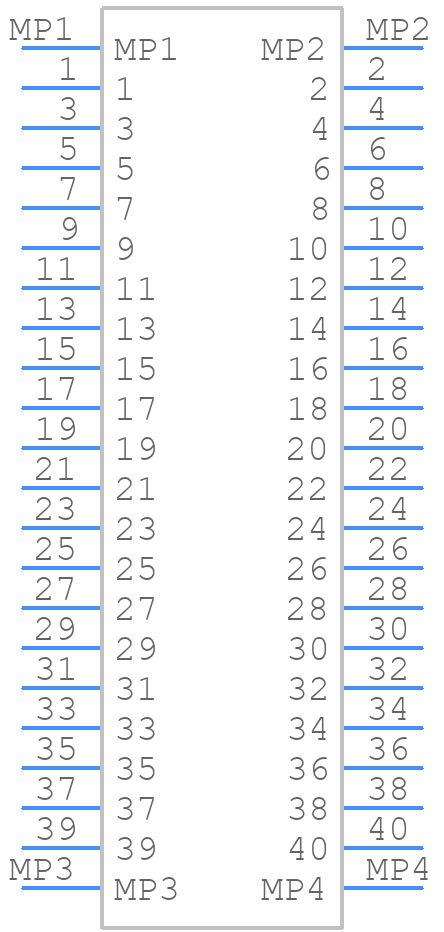

Symbol

click to zoom

PCB Footprints

5046224012 - Molex PCB footprint - Other - Other - 5046224012-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5046224012
Part Number 5046224012
Manufacturer Molex
Pin Count 44
Part Category Connector
Package Category Other
Footprint Name Other - 5046224012-4
Released Date Feb 26, 2024
Last Modified Date Feb 26, 2024 5:26 AM UTC
Pinout / Pin List Click Here (Member Only)

5046224012 Details

Manufacturer Part Number:
5046224012
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Molex
YTEOL:
0
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e4

5046224012 Frequently Asked Questions (FAQs)

The recommended mating sequence for the 5046224012 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the 5046224012 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
The maximum operating temperature for the 5046224012 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
Yes, the 5046224012 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
The recommended torque for the screw locks on the 5046224012 connector is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.11 lbf·in). Over-torquing may damage the connector or the PCB.

Trust Checks

Community Provided

System Verified

Community Approved

5046224012 Overview

Use the download button to access the 5046224012 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 50462, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
