505070-1610 - Molex

Description: Molex, Series Number 505070, 0.35mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 0.3A

Download 505070-1610 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

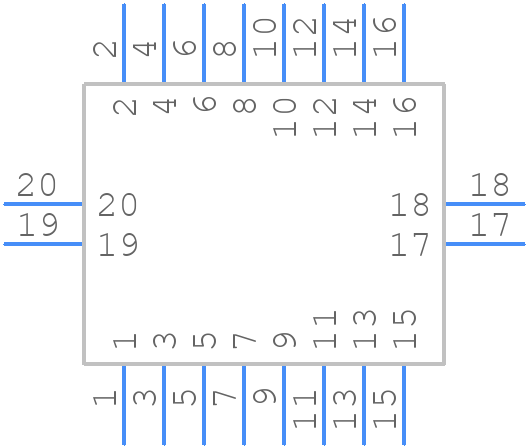

Symbol
505070-1610 - Molex - PCB symbol
click to zoom
PCB Footprints
505070-1610 - Molex PCB footprint - Other - Other - 505070-1610
click to zoom
3D Models
505070-1610 - Molex - 3D model - Other - 505070-1610
click to zoom

505070-1610 Details

  • Manufacturer Part Number:

    505070-1610

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.05 inch

  • Body Depth:

    0.019 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    80 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.014 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.82 mm

  • Plating Thickness:

    3.94u inch

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.35 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

505070-1610 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 505070-1610 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 505070-1610 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 505070-1610 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment. However, it's essential to consult with Molex or a qualified assembly partner to ensure compatibility with specific assembly processes.
  • The recommended wire size for the 505070-1610 connector is 24-20 AWG (0.25-0.5 mm²). It's essential to use wires that meet this specification to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

505070-1610 Overview

Use the download button to access the 505070-1610 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50507, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
