505070-3042 - Molex

Description: SlimStack Board-to-Board Connector, 0.35mm Pitch, SSB RP Series, Plug, 0.60 or 0.70mm Mated Height, 2.00mm Mated Width, Circuits, Armor Nail, 0.15mm Fitting Nail Width

Download 505070-3042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

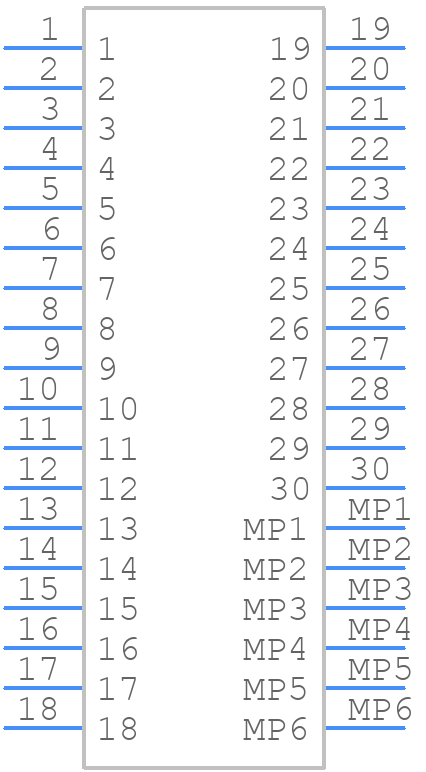

Symbol
505070-3042 - Molex - PCB symbol
click to zoom
PCB Footprints
505070-3042 - Molex PCB footprint - Other - Other - 505070-3042-2
click to zoom
3D Models
505070-3042 - Molex - 3D model - Other - 505070-3042-2
click to zoom

505070-3042 Details

  • Manufacturer Part Number:

    505070-3042

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9

  • Body Breadth:

    0.05 inch

  • Body Depth:

    0.019 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    60 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.014 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.82 mm

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.35 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

505070-3042 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 505070-3042 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 505070-3042 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand moderate exposure to harsh environments, but it's not recommended for extreme environments or prolonged exposure to water or chemicals.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with the 505070-3042 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • To ensure reliable connections and prevent terminal damage, follow proper wire stripping and insertion techniques. Use a wire stripper to remove insulation, and insert the wire into the terminal at a 90-degree angle. Apply gentle pressure while inserting the wire to prevent terminal damage. Also, ensure the wire is fully seated in the terminal and the screw is securely tightened.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

505070-3042 Overview

Use the download button to access the 505070-3042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50507, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
