505110-2696 - Molex

Description: Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 26 Circuits, 150°C Operating Temperature, Gold over Nickel Plating

Download 505110-2696 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

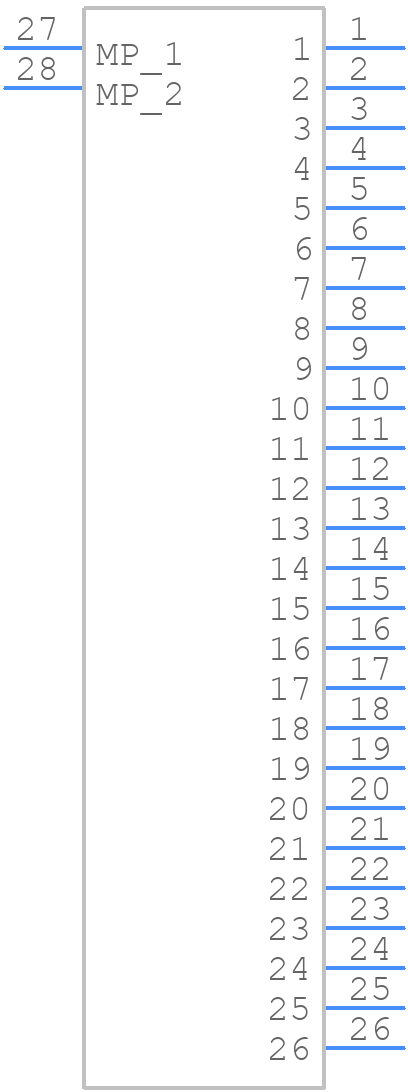

505110-2696 - Molex - PCB symbol
click to zoom
PCB Footprints
505110-2696 - Molex PCB footprint - Other - Other - 505110-2696-1
click to zoom
3D Models
505110-2696 - Molex - 3D model - Other - 505110-2696-1
click to zoom

505110-2696 Details

  • Manufacturer Part Number:

    505110-2696

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.075 inch

  • Body Depth:

    0.161 inch

  • Body Length:

    0.748 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    125VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    2.01u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

505110-2696 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 505110-2696 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 505110-2696 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
  • The 505110-2696 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 505110-2696 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures to prevent damage or electrical issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

505110-2696 Overview

Use the download button to access the 505110-2696 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50511, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
