5051101497 - Molex

Description: Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 14 Circuits, 150°C Operating Temperature, Gold over Nickel Plating

Download 5051101497 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

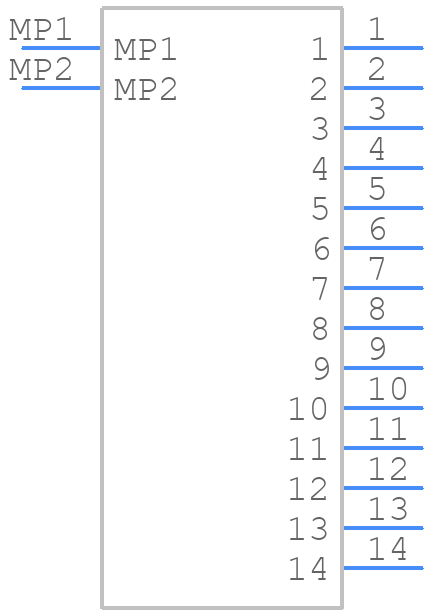

Symbol
5051101497 - Molex - PCB symbol
click to zoom
PCB Footprints
5051101497 - Molex PCB footprint - Other - Other - 5051101497-3
click to zoom
3D Models
5051101497 - Molex - 3D model - Other - 5051101497-3
click to zoom

5051101497 Details

  • Manufacturer Part Number:

    5051101497

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.207 inch

  • Body Depth:

    0.075 inch

  • Body Length:

    0.492 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    125VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    2u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

5051101497 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 5051101497 connector is typically around 50-100 cycles, depending on the application and environmental conditions. However, it's essential to consult with Molex or a qualified engineer to determine the specific mating cycle requirements for your project.
  • The 5051101497 connector is designed to withstand moderate vibration levels, but it's crucial to evaluate the specific vibration requirements of your application. Molex recommends consulting their vibration testing standards and guidelines to ensure the connector meets your project's demands.
  • While the datasheet may provide a general operating temperature range, it's essential to note that the maximum operating temperature for the 5051101497 connector can vary depending on the specific application and environmental conditions. Typically, the maximum operating temperature is around 105°C, but it's recommended to consult with Molex or a qualified engineer for specific guidance.
  • The 5051101497 connector has a certain level of moisture resistance, but it's not designed for immersion in water or extreme humidity. If your application requires operation in a humid or wet environment, it's recommended to consult with Molex or a qualified engineer to determine the necessary modifications or alternative solutions.
  • The recommended torque for the screw terminals on the 5051101497 connector is typically around 0.5-1.5 Nm, depending on the specific application and wire size. However, it's essential to consult the datasheet or Molex's guidelines for specific torque recommendations to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5051101497 Overview

Use the download button to access the 5051101497 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50511, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
