5051102496 - Molex

Description: Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 24 Circuits, 150°C Operating Temperature, Gold over Nickel Plating

Download 5051102496 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

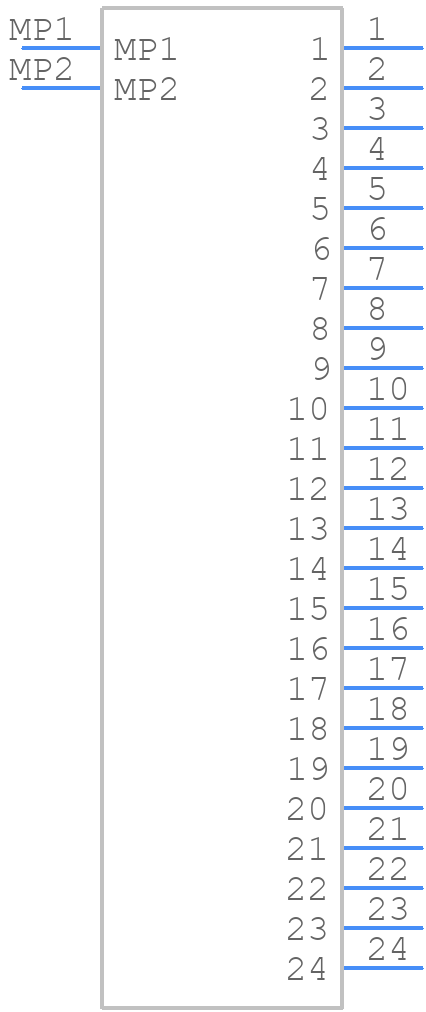

5051102496 - Molex - PCB symbol
click to zoom
PCB Footprints
5051102496 - Molex PCB footprint - Other - Other - 5051102496-2
click to zoom
3D Models
5051102496 - Molex - 3D model - Other - 5051102496-2
click to zoom

5051102496 Details

  • Manufacturer Part Number:

    5051102496

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.075 inch

  • Body Depth:

    0.161 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    125VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • UL Flammability Code:

    94V-0

5051102496 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 5051102496 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 5051102496 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 5051102496 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 5051102496 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The operating temperature range for the 5051102496 connector is -40°C to 105°C. However, it's essential to note that the temperature range may vary depending on the specific application and environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5051102496 Overview

Use the download button to access the 5051102496 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50511, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.

Parts related to 5051102496
