5051104091 - Molex

Description: Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 40 Circuits, Gold over Nickel Plating

Download 5051104091 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

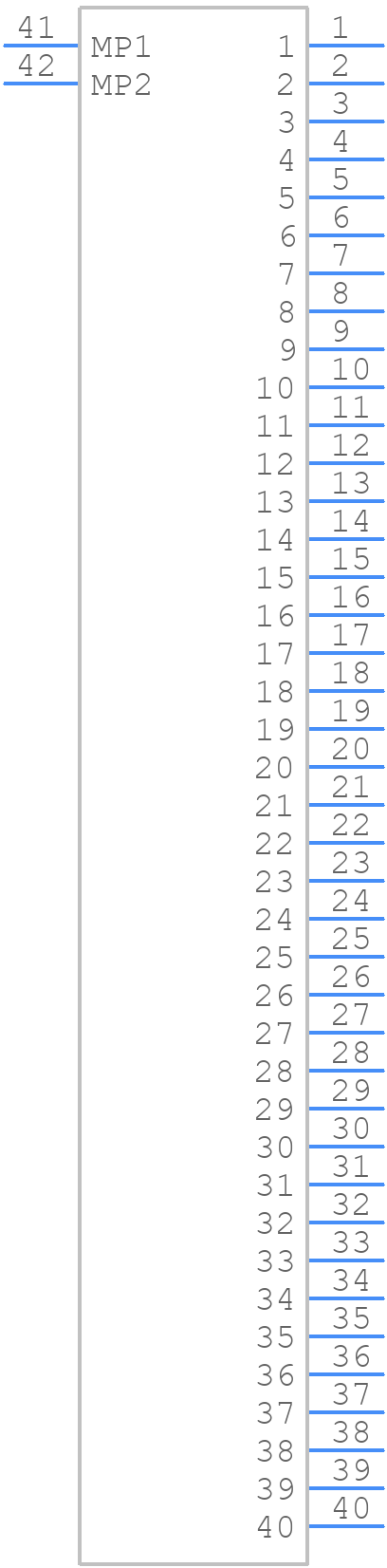

Symbol
5051104091 - Molex - PCB symbol
click to zoom
PCB Footprints
5051104091 - Molex PCB footprint - Other - Other - 5051104091-1
click to zoom
3D Models
5051104091 - Molex - 3D model - Other - 5051104091-1
click to zoom

5051104091 Details

  • Manufacturer Part Number:

    5051104091

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.075 inch

  • Body Depth:

    0.161 inch

  • Body Length:

    0.972 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    125VAC V

  • Durability:

    10 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    2u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

5051104091 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 5051104091 connector is to mate the keying feature first, followed by the electrical contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections in high-vibration environments, it's recommended to use a secondary locking mechanism, such as a screw or clip, in addition to the connector's primary latch. This provides extra security against connector back-out.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to note that the connector's performance may degrade at extreme temperatures. For high-reliability applications, it's recommended to derate the operating temperature to 85°C or lower.
  • Yes, the 5051104091 connector is designed to meet the requirements of IEC 60529, which includes testing for humidity and moisture. However, it's still essential to follow proper sealing and potting procedures to ensure the connector's reliability in high-humidity environments.
  • The recommended torque specification for the screw terminals on the 5051104091 connector is 0.5-1.5 Nm (4-12 in-lbs). Over-torquing can damage the connector, while under-torquing may lead to poor connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5051104091 Overview

Use the download button to access the 5051104091 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50511, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
