5054063060 footprint, schematic symbol and 3D model by Molex

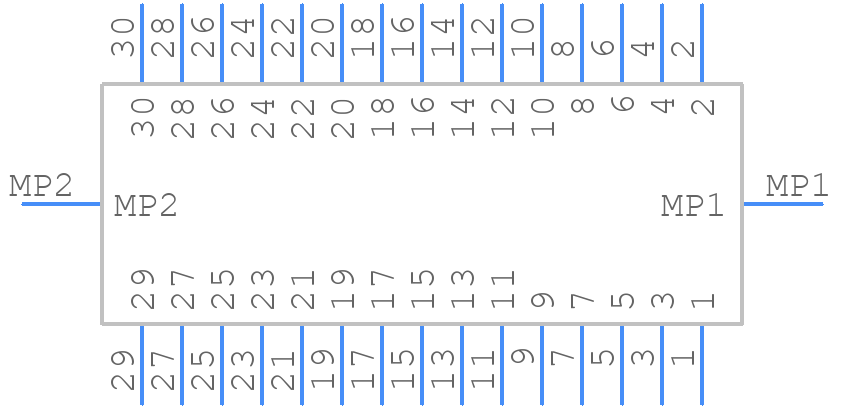

Symbol

click to zoom

PCB Footprints

5054063060 - Molex PCB footprint - Other - Other - 5054063060

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5054063060
Part Number 5054063060
Manufacturer Molex
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - 5054063060
Released Date Feb 24, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

5054063060 Details

Manufacturer Part Number:
5054063060
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Molex
YTEOL:
0
Body Breadth:
0.36 inch
Body Depth:
0.346 inch
Body Length:
1.055 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
TIN OVER NICKEL
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Filter Feature:
NO
Insulation Resistance:
500000000 Ω
Mating Contact Pitch:
0.059 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
7.87u inch
Reference Standard:
UL
Terminal Pitch:
1.4986 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30

5054063060 Frequently Asked Questions (FAQs)

The recommended mating sequence for the 5054063060 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the 5054063060 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
The maximum operating temperature for the 5054063060 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
Yes, the 5054063060 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
The recommended torque for the screw locks on the 5054063060 connector is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). Over-torquing may damage the connector or the PCB.
