5054332881 - Molex

Description: 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 28 Circuits, with Pick-and-Place Tape, Black

Download 5054332881 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

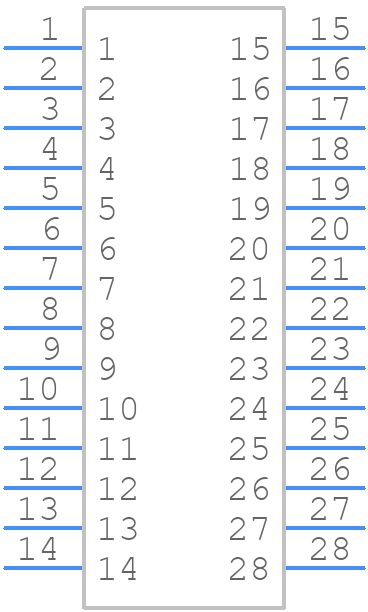

Symbol
5054332881 - Molex - PCB symbol
click to zoom
PCB Footprints
5054332881 - Molex PCB footprint - Other - Other - 50543328YY
click to zoom
3D Models
5054332881 - Molex - 3D model - Other - 50543328YY
click to zoom

5054332881 Details

  • Manufacturer Part Number:

    5054332881

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.331 inch

  • Body Depth:

    0.285 inch

  • Body Length:

    0.87 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Bismuth (Sn/Bi)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    CENTRONIC

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e6

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    28

5054332881 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 5054332881 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 5054332881 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 5054332881 connector is 10 mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 5054332881 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The operating temperature range for the 5054332881 connector is -40°C to 105°C. However, it's essential to note that the temperature range may vary depending on the specific application and environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5054332881 Overview

Use the download button to access the 5054332881 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50543, or try a keyword search, such as Combination Line Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
