Part Image

5054333271 - Molex

Description: 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 32 Circuits, Black

Download 5054333271 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

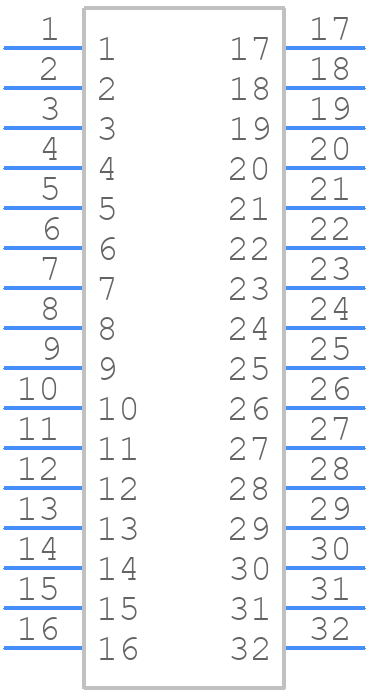

5054333271 - Molex - PCB symbol
click to zoom
PCB Footprints
5054333271 - Molex PCB footprint - Other - Other - 50543332YY
click to zoom
3D Models
5054333271 - Molex - 3D model - Other - 50543332YY
click to zoom

5054333271 Details

  • Manufacturer Part Number:

    5054333271

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.331 inch

  • Body Depth:

    0.285 inch

  • Body Length:

    0.969 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Bismuth (Sn/Bi)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e6

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

5054333271 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 5054333271 connector is to mate the keying feature first, followed by the shell, and finally the contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 5054333271 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure and functional.
  • The maximum operating temperature for the 5054333271 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • While it's possible to use a different wire gauge, it's not recommended. Using a wire gauge that's not specified in the datasheet may affect the connector's performance, reliability, and durability. It's best to stick with the recommended wire gauge to ensure optimal results.
  • To ensure proper contact mating and prevent fretting corrosion, make sure to follow proper mating and unmating procedures, and apply a suitable contact lubricant. Additionally, ensure that the connector is properly cleaned and dried before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5054333271 Overview

Use the download button to access the 5054333271 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50543, or try a keyword search, such as Combination Line Connectors
