Part Image

5054760810 - Molex

Description: SlimStack Board-to-Board Plug, 0.40mm Pitch, Battery Series, 0.60mm Mated Height, 2.00mm Mated Width, 8 Circuits, 10.0A

Download 5054760810 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

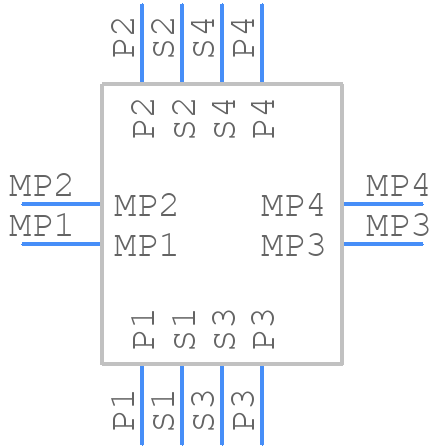

Symbol
5054760810 - Molex - PCB symbol
click to zoom
PCB Footprints
5054760810 - Molex PCB footprint - Other - Other - 5054760810-3
click to zoom
3D Models
5054760810 - Molex - 3D model - Other - 5054760810-3
click to zoom

5054760810 Details

  • Manufacturer Part Number:

    5054760810

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    3

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

5054760810 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the 5054760810 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 5054760810 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 5054760810 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The recommended wire size for the 5054760810 connector is 24-20 AWG (0.25-0.5 mm²).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5054760810 Overview

Use the download button to access the 5054760810 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50547, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
