5055557-4 - TE Connectivity

Description: Body Features: Terminal Profile High | Configuration Features: Number of Positions 10 | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Finish Matte | Contact Mating Area Plating Material Finish Matte | Contact Mating Area Plating Material Thickness 3.81 MICM | PCB Contact Termination Area Plating Material Tin | Contact Fabrication Stamped & Formed | Contact Mating Area Plating Material Thickness 150 MICIN | Contact Mating Area Plating Material Tin | PCB Cont

Download 5055557-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5055557-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

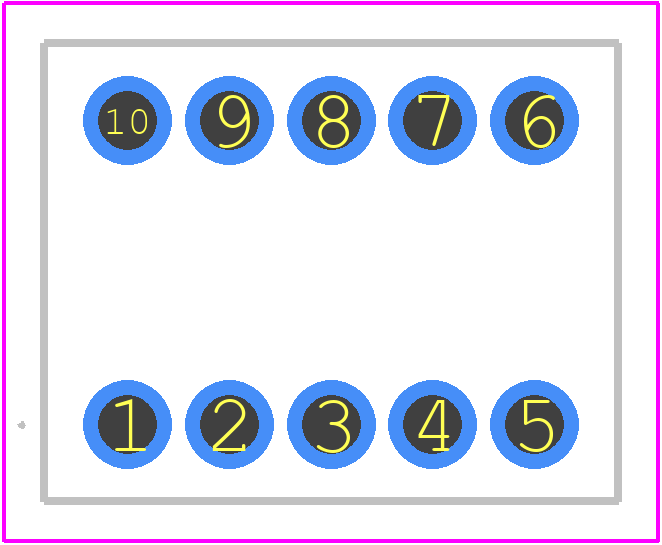

5055557-4 - TE Connectivity PCB footprint - Other - Other - 5055557-4-2
click to zoom
3D Models
5055557-4 - TE Connectivity - 3D model - Other - 5055557-4-2
click to zoom

5055557-4 Details

  • Manufacturer Part Number:

    5055557-4

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    6 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.4

  • Additional Feature:

    STANDARD: 94V-0, GLASS FILLED POLYAMIDE

  • Number of Ways:

    10

  • Rated Current:

    25 A

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    POWER TERMINAL
