5055558-4 - TE Connectivity

Description: Body Features: Terminal Profile Standard | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 10 | Contact Features: Contact Mating Area Plating Material Thickness 3.04 MICM | Contact Current Rating (Max) 37.8 AMP | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Tin | PCB Contact Termination Area Plating Material Thickness .5 – 3.04 MICM | PCB Contact Termination Area Plating Material Thickness 20 – 120 MICIN | PCB Contact Termination A

Download 5055558-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5055558-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

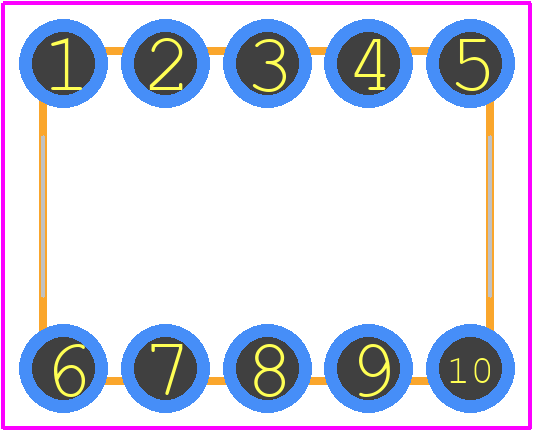

5055558-4 - TE Connectivity PCB footprint - Other - Other - 5055558-4-3
click to zoom
3D Models
5055558-4 - TE Connectivity - 3D model - Other - 5055558-4-3
click to zoom

5055558-4 Details

  • Manufacturer Part Number:

    5055558-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MATERIAL: COPPER ALLOY

  • Rated Current:

    37.8 A

  • Terminal and Terminal Block Type:

    POWER TERMINAL

5055558-4 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 5055558-4 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • The operating temperature range for the 5055558-4 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 5055558-4 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The 5055558-4 connector has an IP67 rating, providing protection against dust and water ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5055558-4 Overview

Use the download button to access the 5055558-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 50555, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
