5110-B7A2PL footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

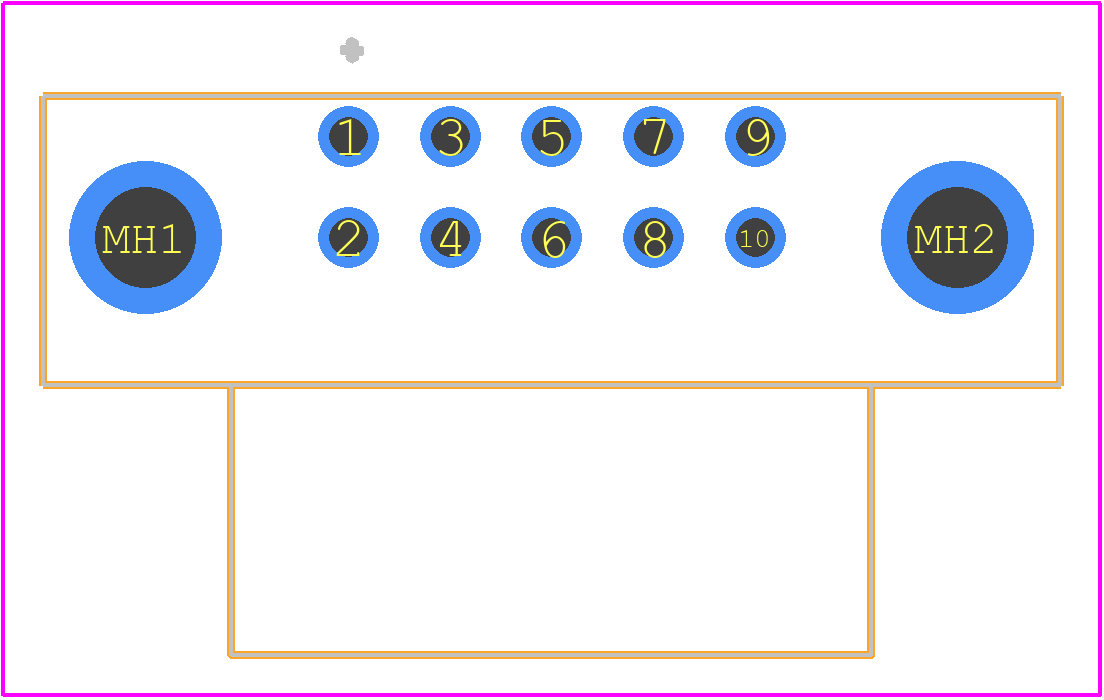

5110-B7A2PL - 3M PCB footprint - Other - Other - 5110-B7A2PL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5110-B7A2PL
Part Number 5110-B7A2PL
Manufacturer 3M
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 5110-B7A2PL-1
Released Date Aug 24, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

5110-B7A2PL Details

Manufacturer Part Number:
5110-B7A2PL
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
19 Weeks
Manufacturer:
3M Interconnect
Connector Type:
BOARD CONNECTOR
Manufacturer Series:
5100

5110-B7A2PL Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 5110-B7A2PL is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration.
Yes, the 5110-B7A2PL has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
The operating temperature range for the 5110-B7A2PL is -40°C to 125°C (-40°F to 257°F).
Yes, the 5110-B7A2PL can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG.

Trust Checks

Expert Contribution

System Verified

Community Approved

5110-B7A2PL Overview

Use the download button to access the 5110-B7A2PL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 5110-, or try a keyword search, such as Headers and Edge Type Connectors
