51296-1433 - Molex

Description: Conn FFC/FPC Connector SKT 14 POS 0.5mm Solder RA SMD Embossed T/R

Download 51296-1433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

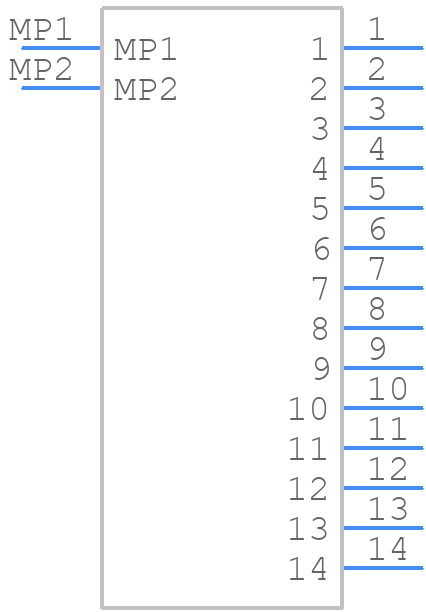

51296-1433 - Molex - PCB symbol
click to zoom
PCB Footprints
51296-1433 - Molex PCB footprint - Other - Other - 51296-1433-2
click to zoom
3D Models
51296-1433 - Molex - 3D model - Other - 51296-1433-2
click to zoom

51296-1433 Details

  • Manufacturer Part Number:

    51296-1433

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Body Breadth:

    0.051 inch

  • Body Depth:

    0.169 inch

  • Body Length:

    0.421 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    40u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

51296-1433 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 51296-1433 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 51296-1433 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • The 51296-1433 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the 51296-1433 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures to prevent damage to the connector or wire.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

51296-1433 Overview

Use the download button to access the 51296-1433 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 51296, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
