51296-1894 - Molex

Description: FFC & FPC Connectors 0.5 FPC ZIF 18Ckt Em ZIF 18Ckt EmbsTp Pkg

Download 51296-1894 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

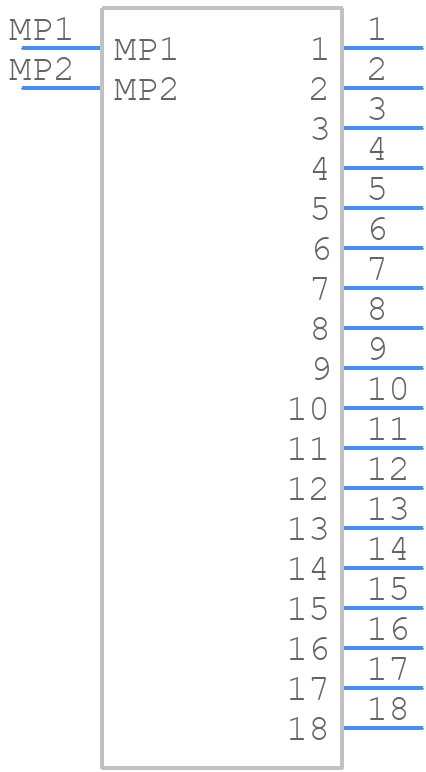

51296-1894 - Molex - PCB symbol
click to zoom
PCB Footprints
51296-1894 - Molex PCB footprint - Other - Other - 51296-1894-2
click to zoom
3D Models
51296-1894 - Molex - 3D model - Other - 51296-1894-2
click to zoom

51296-1894 Details

  • Manufacturer Part Number:

    51296-1894

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    3

  • Additional Feature:

    EASY-ON, POLARIZED

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.051 inch

  • Body Depth:

    0.157 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    40 mΩ

  • Contact Style:

    DUAL PRONG

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

  • Withdrawl Force-Min:

    ZIF N

51296-1894 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 51296-1894 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 51296-1894 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures, salt spray, or UV exposure.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 51296-1894 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the connector's current rating. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, the 51296-1894 connector requires specific PCB layout considerations, such as keeping the PCB traces away from the connector's mounting holes and ensuring proper clearance around the connector's body. Consult the Molex application notes or a qualified engineer for guidance on PCB layout design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

51296-1894 Overview

Use the download button to access the 51296-1894 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 51296, or try a keyword search, such as Headers and Edge Type Connectors
