The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the 5134-B7A2PL connector.
Yes, the 5134-B7A2PL connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
The operating temperature range for the 5134-B7A2PL connector is -55°C to 125°C (-69°F to 257°F).
Yes, the 5134-B7A2PL connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The mating cycle life of the 5134-B7A2PL connector is 500 cycles minimum, ensuring reliable connections over an extended period.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5134-B7A2PL Overview

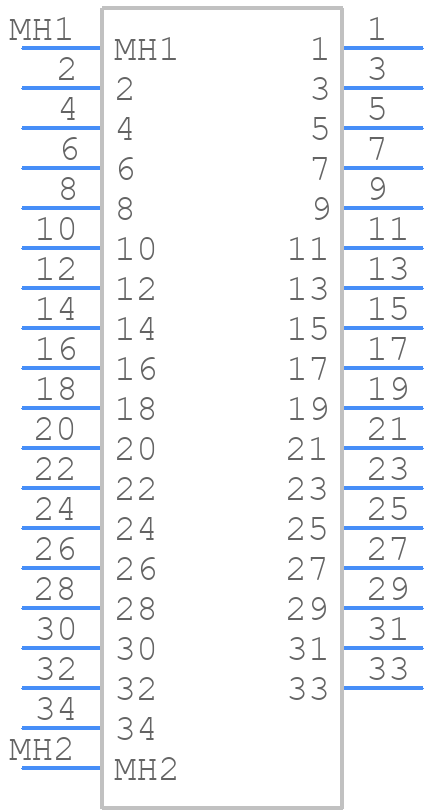

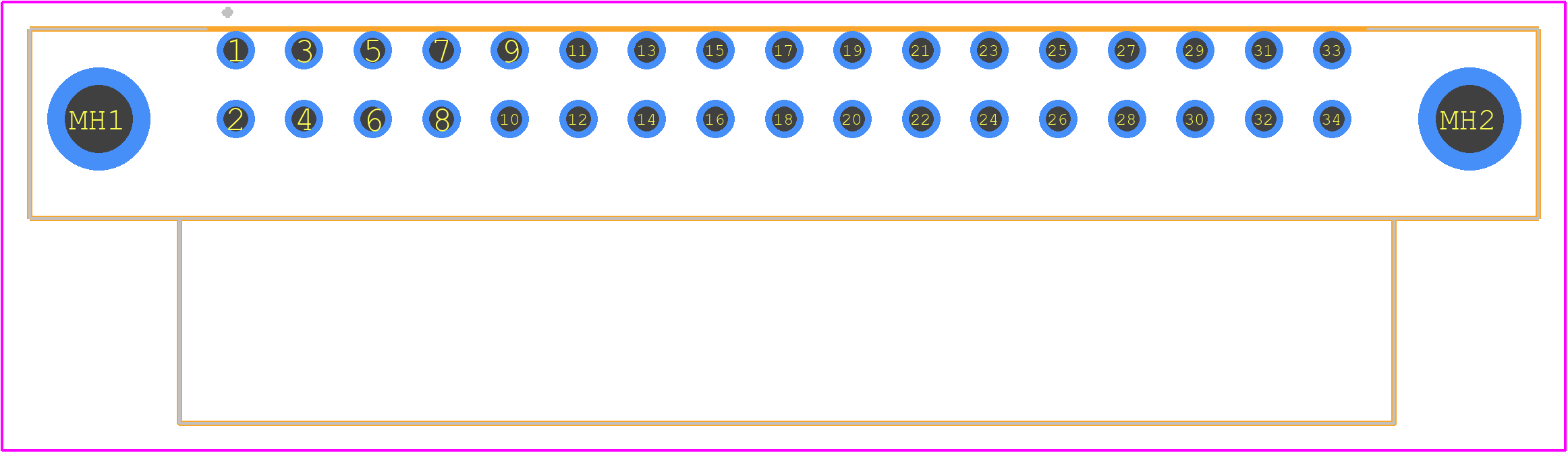

Use the download button to access the 5134-B7A2PL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 5134-,
or try a keyword search, such as Headers and Edge Type Connectors
