5145299-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Pre-Installed Wire & Cable Without | Cover With | Number of Signal Positions 6 | Number of Positions 6 | Card Detection Switch With | Operating Function NO | Contact Features: Contact Mating Area Plating Material Gold | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) .2 AMP | Contact Base Material Phosphor Bronze | Contact Underplating Material Nickel | Dimensions: Profile Height from PCB .059 INCH | Accept

Download 5145299-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5145299-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

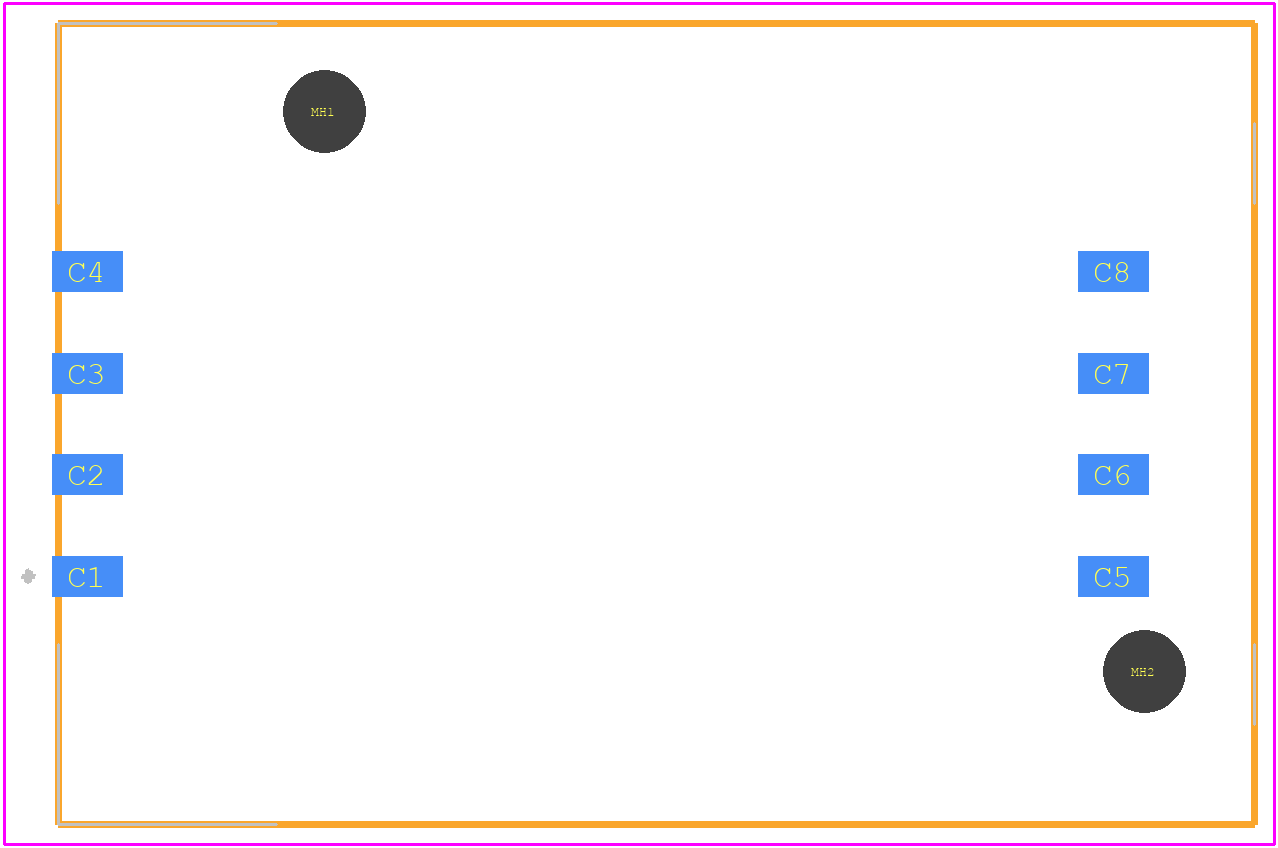

5145299-1 - TE Connectivity PCB footprint - Other - Other - 5145299-1-1
click to zoom
3D Models
5145299-1 - TE Connectivity - 3D model - Other - 5145299-1-1
click to zoom

5145299-1 Details

  • Manufacturer Part Number:

    5145299-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.159 inch

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    10000 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .2A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.2 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

5145299-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5145299-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5145299-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5145299-1 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • Yes, the 5145299-1 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or contact their support for specific guidance.
