5145299-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Operating Function NO | Pre-Installed Wire & Cable Without | Card Detection Switch With | Number of Signal Positions 6 | Number of Positions 8 | Cover With | Contact Features: Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) .2 AMP | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Gold | Dimensions: Profile Height from PCB .159 INCH | Profil

Download 5145299-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

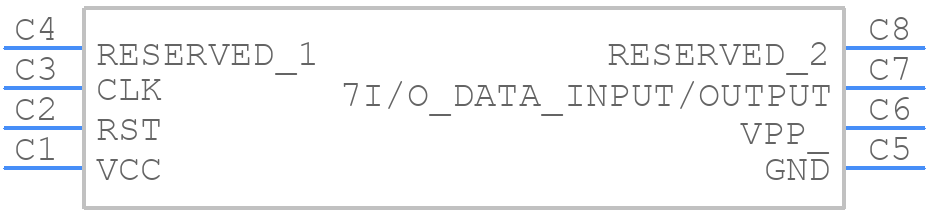

5145299-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

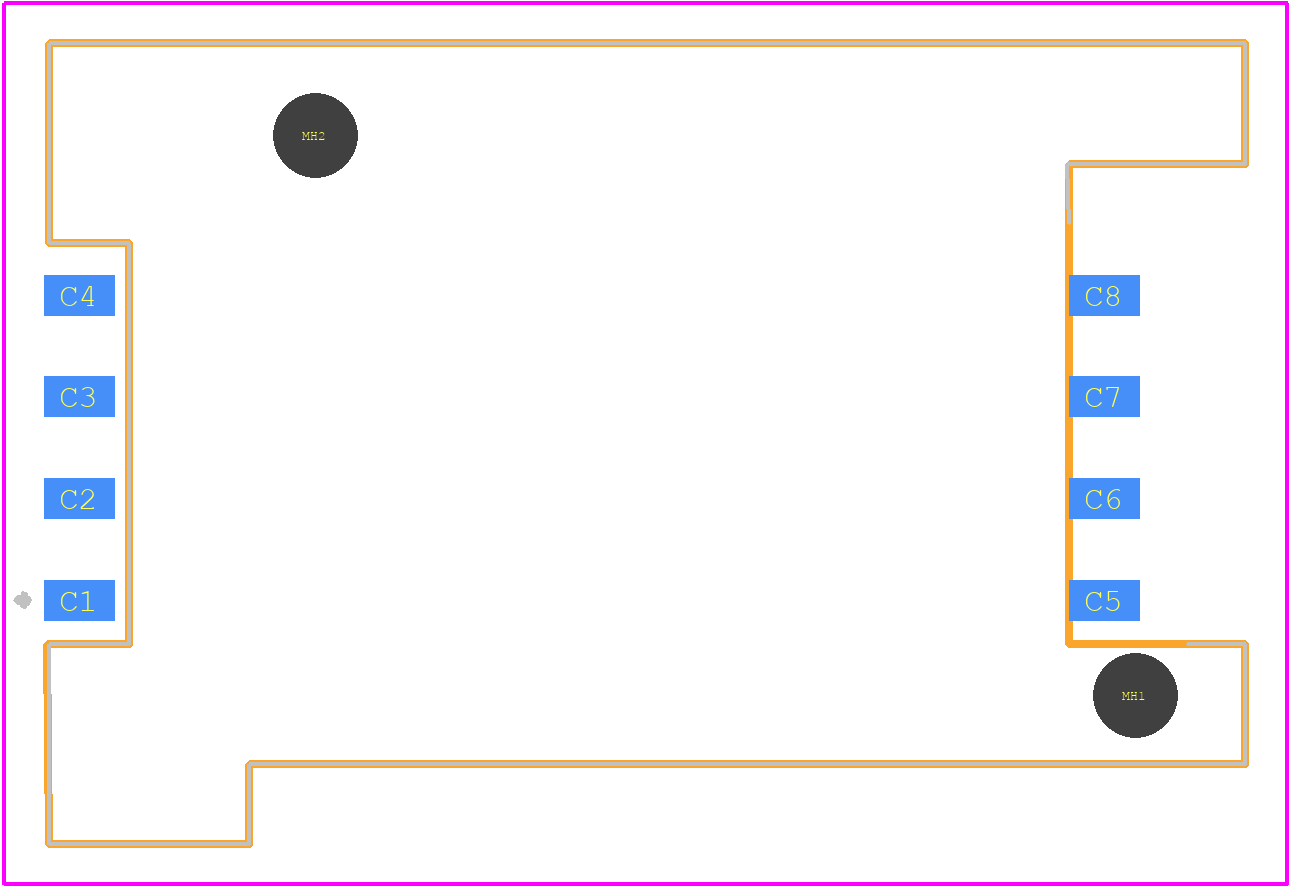

5145299-2 - TE Connectivity PCB footprint - Other - Other - 5145299-2-1
click to zoom
3D Models
5145299-2 - TE Connectivity - 3D model - Other - 5145299-2-1
click to zoom

5145299-2 Details

  • Manufacturer Part Number:

    5145299-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.159 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Arrangement:

    S6P2

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    10000 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .2A

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.2 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8
