The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 5146229-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
The operating temperature range for the 5146229-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
The 5146229-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications where it will be exposed to harsh chemicals or prolonged immersion in water.
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 5146229-1 connector. However, it's essential to ensure that the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5146229-1 Overview

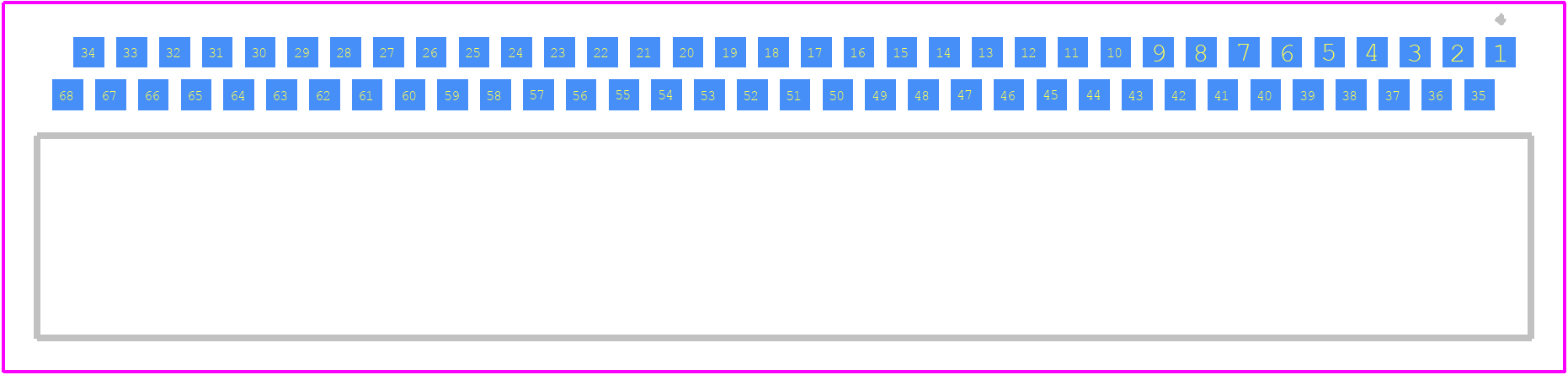

Use the download button to access the 5146229-1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 51462,
or try a keyword search, such as Assembly Items
