The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the EDAC 516-056-520-202 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity in such environments.
The EDAC 516-056-520-202 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's recommended to use additional sealing or protective measures for extended outdoor exposure.
The EDAC 516-056-520-202 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
While the EDAC 516-056-520-202 connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult the manufacturer's guidelines or contact their support for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
516-056-520-202 Overview

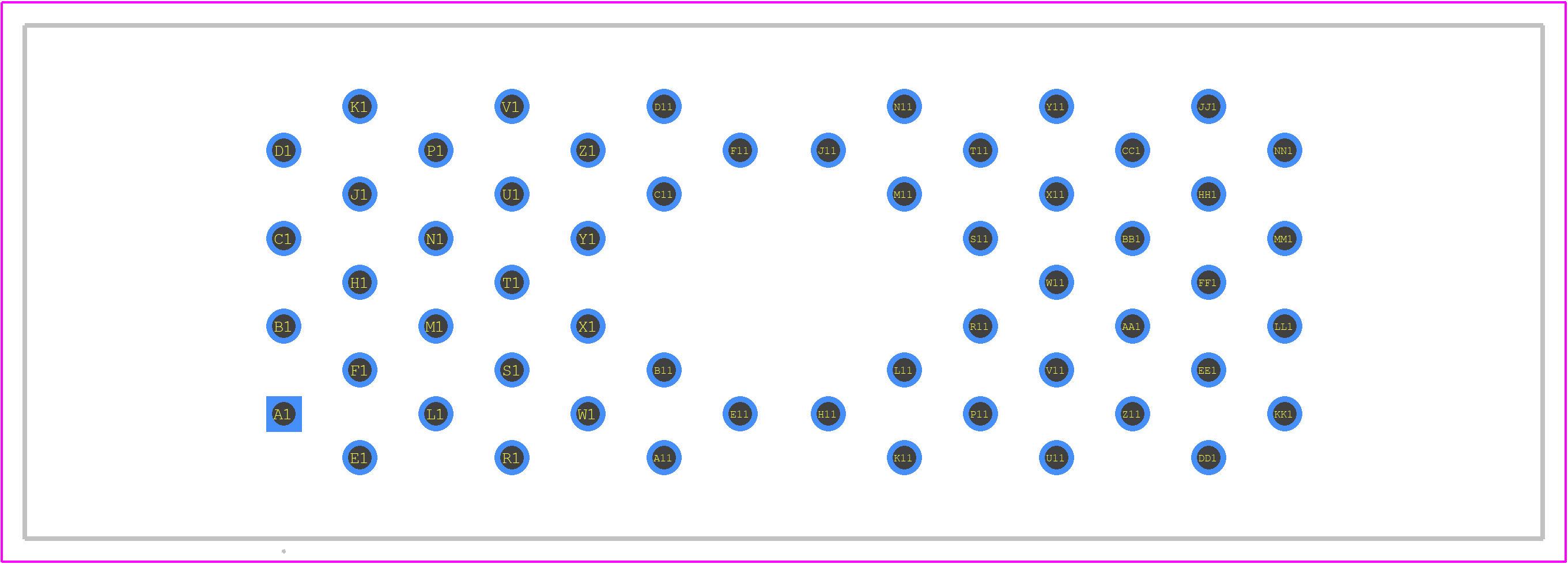

Use the download button to access the 516-056-520-202 schematic symbol, PCB footprint, and 3D model.
