516-056-520-402 - EDAC

Description: Rack & Panel Connectors RACK AND PANEL CONNECTOR 56pos receptacle

Download 516-056-520-402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
516-056-520-402 - EDAC - PCB symbol
click to zoom
PCB Footprints

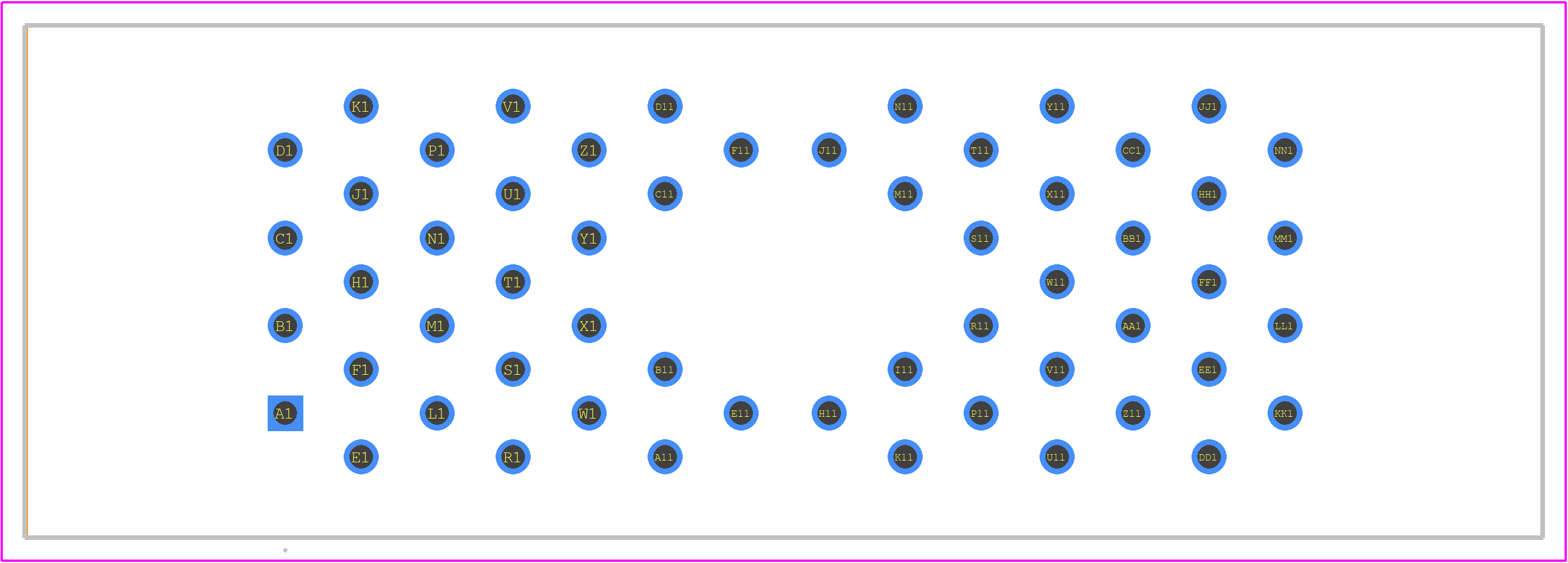

516-056-520-402 - EDAC PCB footprint - Other - Other - 516-056-520-402-2
click to zoom
3D Models
516-056-520-402 - EDAC - 3D model - Other - 516-056-520-402-2
click to zoom

516-056-520-402 Details

  • Manufacturer Part Number:

    516-056-520-402

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • YTEOL:

    7.35

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    0.876 inch

  • Body Depth:

    0.798 inch

  • Body Length:

    2.592 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    HERMAPHRODITIC

  • Contact Material:

    NOT SPECIFIED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYCARBONATE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    8.5 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    56

  • UL Flammability Code:

    94V-0

516-056-520-402 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw locks on the 516-056-520-402 connector.
  • Yes, the 516-056-520-402 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and aerospace.
  • The operating temperature range for the 516-056-520-402 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 516-056-520-402 connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The mating cycle life of the 516-056-520-402 connector is 500-1000 cycles, depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

516-056-520-402 Overview

Use the download button to access the 516-056-520-402 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 516-0, or try a keyword search, such as Multiway Rack and Panel Connectors
